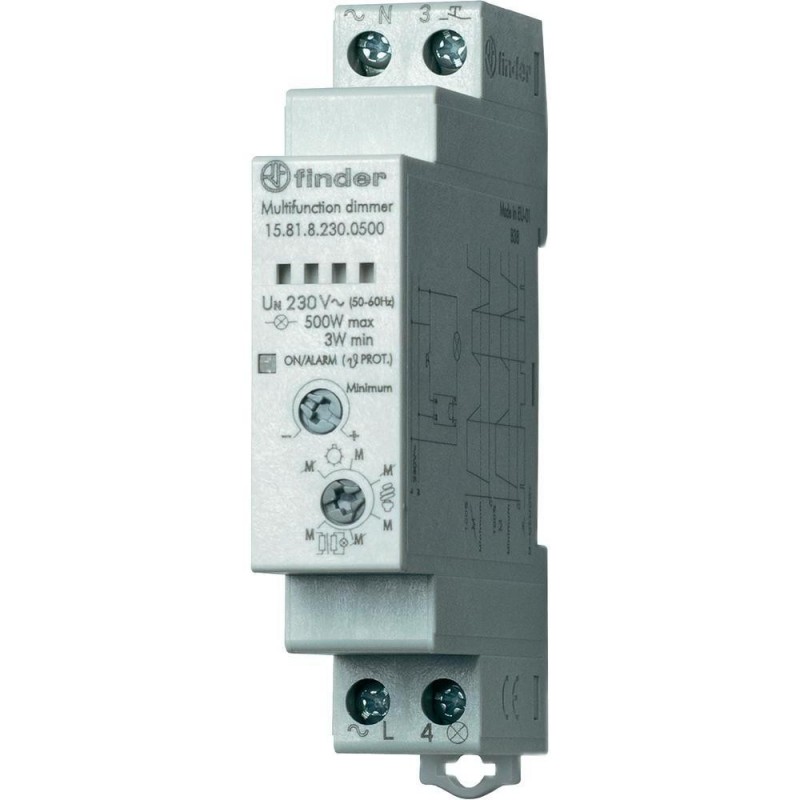

Finder universal dimmer also for LEDs DIN 230V 15.81.8.230
FIN 158182300500
8012823358321
Finder universal dimmer with DIN connection, with the following features:
- Nominal supply voltage 230V AC (50/60 Hz)
- Nominal output voltage 230V AC
- Stand-by power consumption 0.5W
- Operating range (0.8...1.1) UN
- Maximum power 500W
- Minimum power 3W
- Adjustment method: Trailing edge/Leading edge
Finder universal dimmer also for LEDs DIN 230V 15.81.8.230
€47.96
Tax included
€47.96
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 72
: 16
Pay in installments with Klarna
Features:
- Finder Series
- Ambient temperature: -10...+50°C
- IP20 degree of protection
Lamp capacity:
- incandescent/halogen 230V 500W
- toroidal transformers for 500W low voltage halogen lamps
- electromagnetic transformers for 500W low voltage halogen lamps
- electronic transformers (ballast) for 500W low voltage halogen lamps
- 100W dimmable compact fluorescent lamps (CFL)
- 230 V 100W dimmable LEDs
- electronic transformers for low voltage LED lamps 100W
Advantages:
- 35 mm rail mounting (EN 60715)
- Leading edge or trailing edge dimming method
- Also compatible with energy-saving lamps, dimmable compact fluorescent lamps (CFL) or dimmable LEDs and all types of electromechanical transformers
- Linear regulation
- Automatic frequency detection of the supply voltage
- Protection by thermal fuse
- Suitable for incandescent and halogen lamps
- Usable in both 3 and 4 wire systems
- Soft" switching on and off
- Two types of programming: with or without light intensity memory
- Protection by thermal fuse
- Module width 17.5 mm, 35 mm rail mounting (EN 60715)
- Maximum switchable power 500 W
- Multifunction
- Adjustment method Leading edge or trailing edge (depending on function)
- Compatible with energy-saving lamps, dimmable compact fluorescent lamps (CFL) or dimmable LEDs and all types of electromechanical transformers
- With automatic frequency detection
Used for LED dimming on mega yachting use in Greece
Ottimo, come da descrizione.
Montaggio semplice e veloce.
Data sheet
- Type: Dimmer
- Installation: Din
