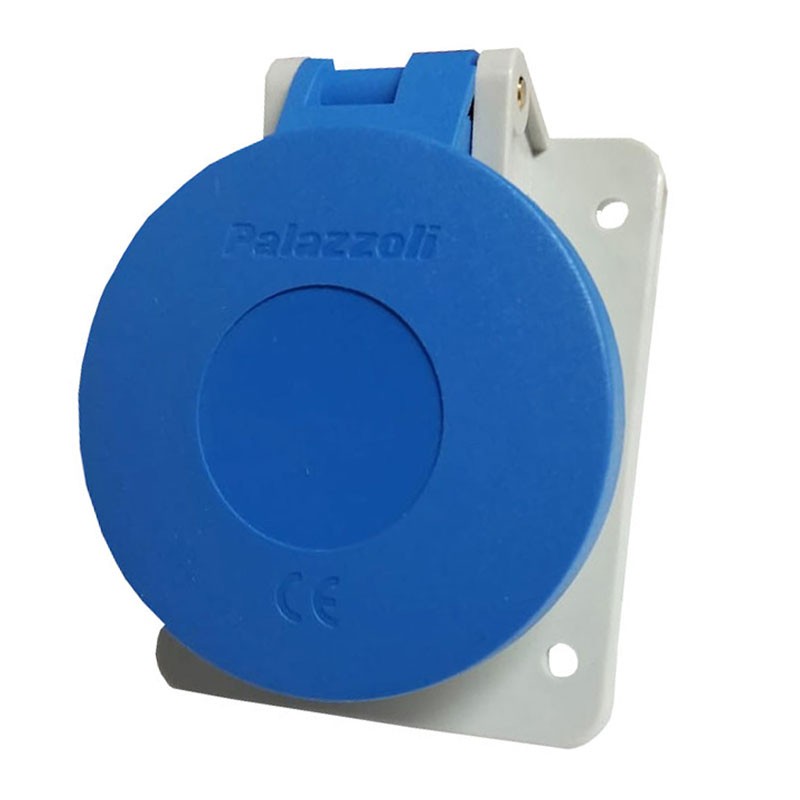

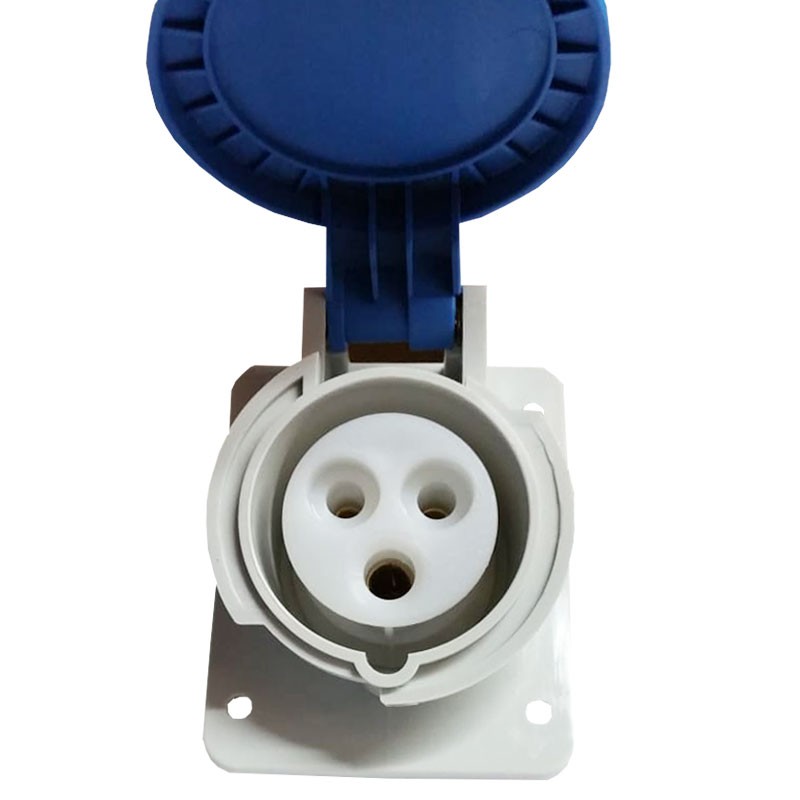

Palazzoli CEE industrial socket for switchboard 2P+E 16A 230V IP44
PAL 488126
Inclined fixed socket for Palazzoli switchboard, with the following characteristics:
- Rated voltage: 230V
- Rated insulation voltage: 690V
- Poles: 2P +T
- Nominal current 16A
- Frequency: 50/60Hz
- Degree of protection IP44
Palazzoli CEE industrial socket for switchboard 2P+E 16A 230V IP44
€6.10
Tax included
€6.10
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 175
: 57
Pay in installments with Klarna
Features:
- Palazzoli Series
- Storage ambient temperature: MIN -30°C - MAX +70°C
- Ambient temperature: MIN -25°C - MAX +50°C
- Max conductor section 2,5 mm²
- Color grey RAL 7035
- Cover color blue
- Terminal type: indirect clamping
- Input cable diameter 14÷18 mm
- Shock resistance IK08 according to IEC/EN 62262
- Hourly ref: 6h
- Body material: thermoplastic
- Execution: recessed
- Shape: inclined
- Flange dimensions: 65X83 mm
- Plug-socket standard: EN60309-2
Parfait, tout est ok pour moi! Très bon produit!
Tutto bene anche nella comunicazione!
OK!
Data sheet
- Type: Sockets CEE
- Voltage: 220/250VAC
- Poles: 2P+T
- Degree of protection: IP44
- Installation: Recessed
- Amps: 16A
