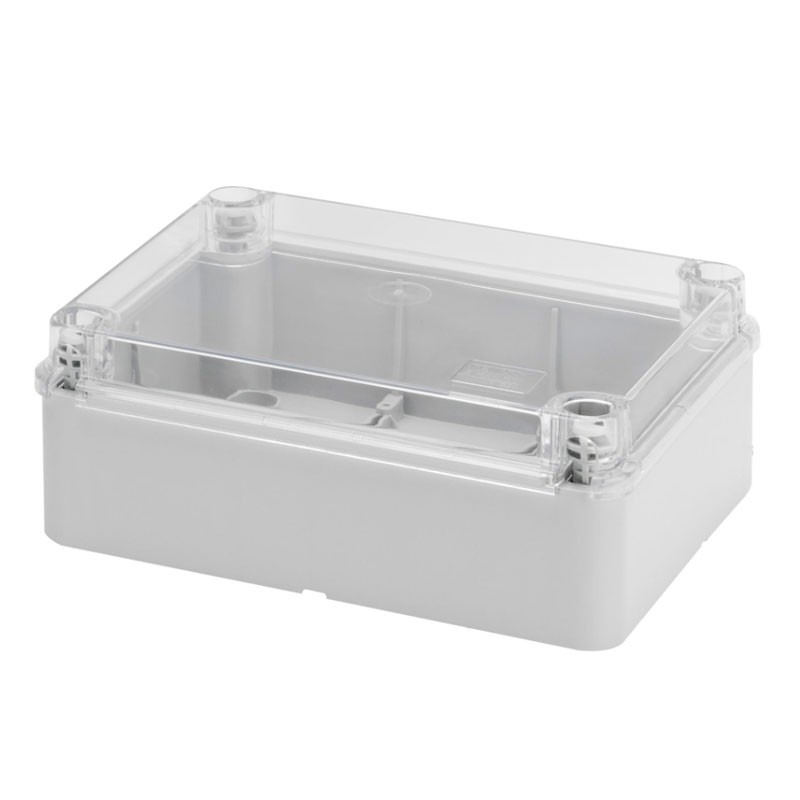

Gewiss external box with transparent cover 240x190x90 GW44428
GEW GW44428
8011564014114
Gewiss junction box, with the following characteristics:
- Suitable for electrical and electronic equipment
- Transparent cover: low screw
- Degree of protection IP56
- Impact resistance IK08

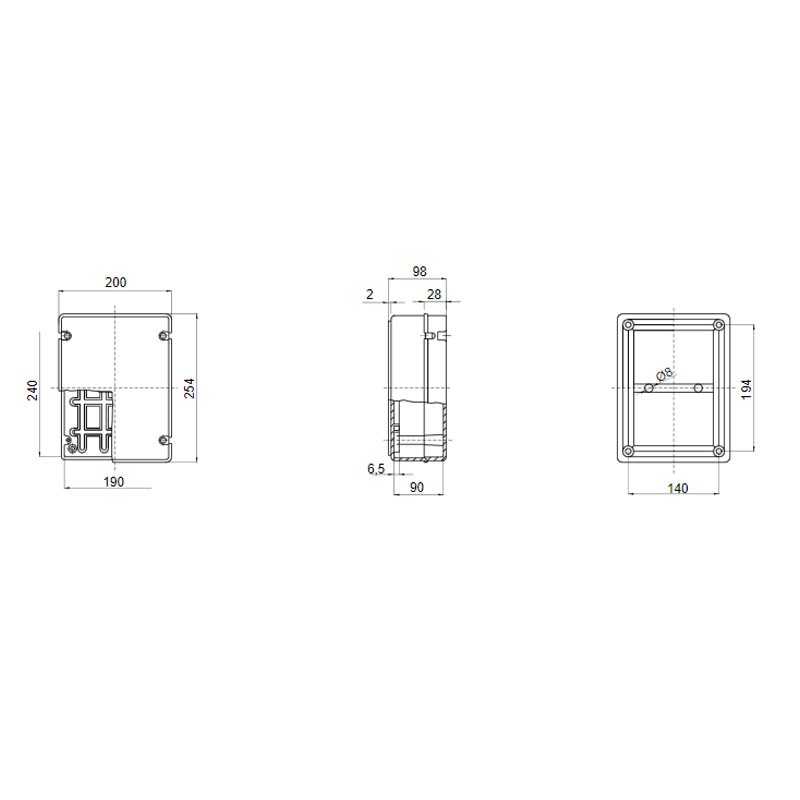

- Internal dimensions BxHxP (mm) 240x190x90
Accessories for restoring insulation GW44621, GW44622.
Gewiss external box with transparent cover 240x190x90 GW44428
€43.75
Tax included
€43.75
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 110
: 1
Pay in installments with Klarna
Features:
- Gewiss Series
- Insulation class II (according to IEC 61140 standard)
- Color Grey RAL 7035
- Material Technopolymer GWPLAST 120
- Ø max. executable holes 37 mm
- Cover screws (n. and type): 4 - Stainless steel
- Application: Industrial applications
- Glow wire resistance 650 °C
- Temperature of use: -25 +60 °C
- Type Material: Halogen free according to EN 60754-2
- Electrocod Code 0231
- Thermopressure with ball 110 °C
- Screw tightening torque: 1.8 Newton/meters
- Smooth walls
- Ware number 85381000
There are no reviews
Data sheet
- Type: Wall
- Shape: Rectangular
- Version: Transparent Cover
- Degree of protection: IP56
- Model: Smooth wall
