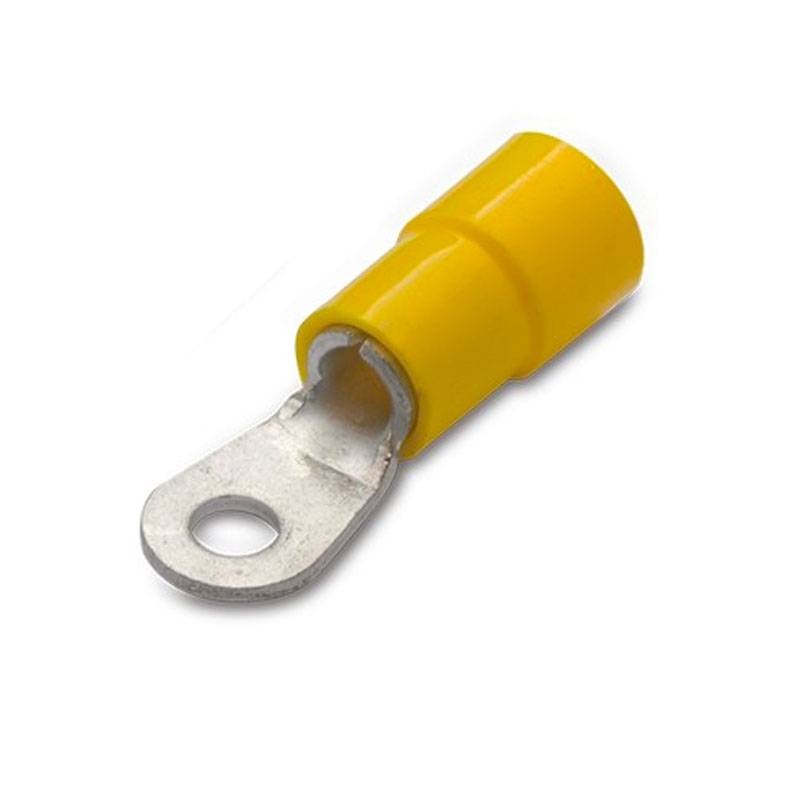

BM PVC cable lug with yellow eyelet 100 pieces 00343
BMM 00343
8013629003439
BM lugs for copper conductors with eyelet, pre-insulated PVC from sheet with the following characteristics:
- Terminal material: tinned copper
- Insulating material: PVC
- Rated voltage: 300V
- Operating temperature: 75 degrees
- Cross section: 4 to 6 mm²
- Screw diameter: 10 mm

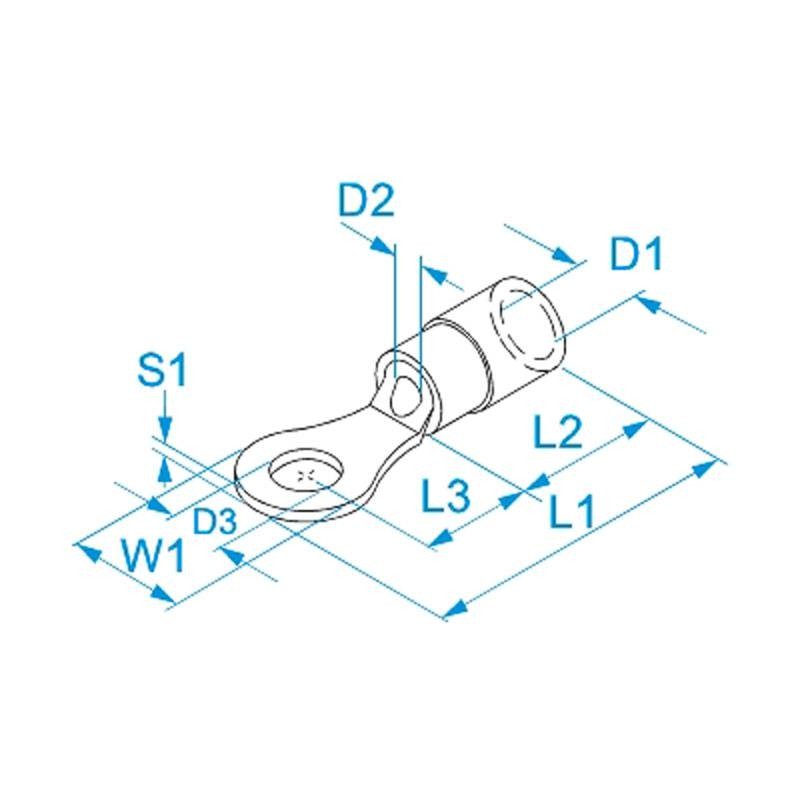

- Dimensions: 19x40x14x16.5x6.6x3.5x10.5x1 (W1 - L1 - L2 - L3 - D1 - D2 - D3 - S1)
Package of 100 pieces.
BM PVC cable lug with yellow eyelet 100 pieces 00343
€17.22
Tax included
€17.22
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 25
: 3
Features:
- AWG/MCM 12-10 section
- For screw diameter 10
- For 3/8" screw
There are no reviews
Data sheet
- Diameter:
- 10mm
- Type:
- Terminal lugs
- Section:
- 4-6mmq
