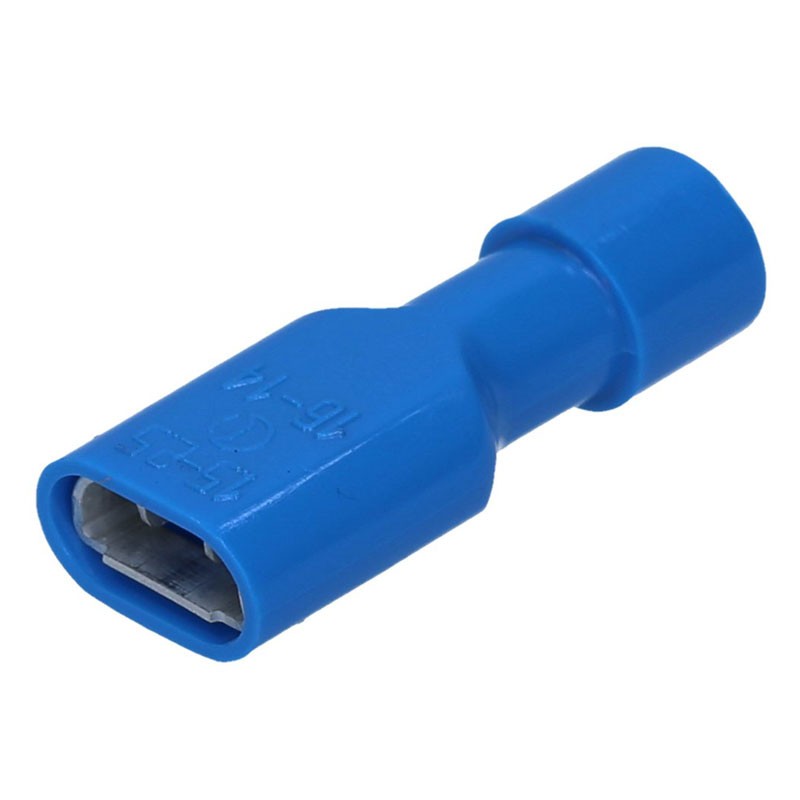

Cembre Cable Lugs Female 6.3X0.8 pack of 100 Pieces BF-F608P
CEM BF-F608P
8016692002071
Cembre female terminals pack of 100 pieces, with the following characteristics:
- Width 6.35 mm
- Length 23 mm
- Hook height 0.8 mm.
Cembre Cable Lugs Female 6.3X0.8 pack of 100 Pieces BF-F608P
€0.13
Tax included
€0.13
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6600
: 480
Pay in installments with Klarna
Applications:
- Cable type: rigid copper
- Minimum cross-section: 1.5 mm2
- Nominal Section: 2.5 mm2
- Cable type: flexible copper
- Minimum cross-section: 1.5 mm2
- Nominal section: 2,5 mm2.
Characteristics:
- Halogen free yes
- Class UL94 V0
- Minimum temperature of use 20 °C
- Maximum operating temperature 115 °C
- Maximum operating temperature for short periods 130 °C
- Dimensional form Socket
- Material (Body) Brass, electrolytically tinned
- Material (Partial reinforcement) Copper ETP electrolytically tinned
- Material (Fully Insulating Sleeve) Polycarbonate
The PC pre-insulated plug-in connectors have been designed to meet the increasingly stringent market requirements for reliability and safety of components for electrical connections.
The PC pre-insulated plug-in connectors have an insulating sleeve made of Polycarbonate, a halogen-free thermoplastic characterized, among other things, by a particular molecular structure that gives greater toughness than PVC and PA6.6.
There are no reviews
Data sheet
- Type: Terminal lugs
- Section: 2.5 mmq
