BM copper 120 mm² tube lugs for uninsulated conductors 032433
BMM 032433
Copper BM tube lugs for uninsulated conductors with the following characteristics:
- Terminal material: tinned copper
- Operating temperature: -50 °C to +150 °C
- Inspection hole: No
- Cross-section: 120 mm²
- AWG/MCM cross-section: 4/0
- Screw diameter: 10 mm
- Stud size: 3/8"
- Hexagon die number: 18

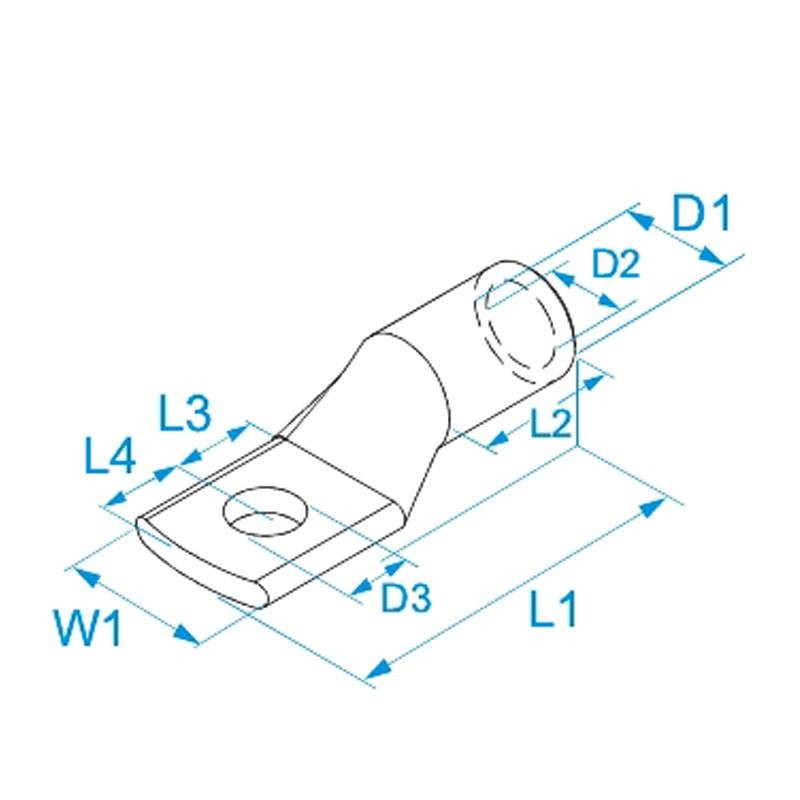

- Dimensions: 15x39x16x8x7x11.5x8.5x6.5 (W1 - L1 - L2 - L3 - L4 - D1 - D2 - D3)
- Area of application: Narrow width connection flap allows connection on equipment with terminals that are not adequately sized to accommodate standard terminals
- Reference Standards: UL 486 AB
BM copper 120 mm² tube lugs for uninsulated conductors 032433
€5.29
Tax included
€5.29
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 266
: 128
Pay in installments with Klarna
There are no reviews
Data sheet
- Type: Terminal lugs
- Section: 120mmq
