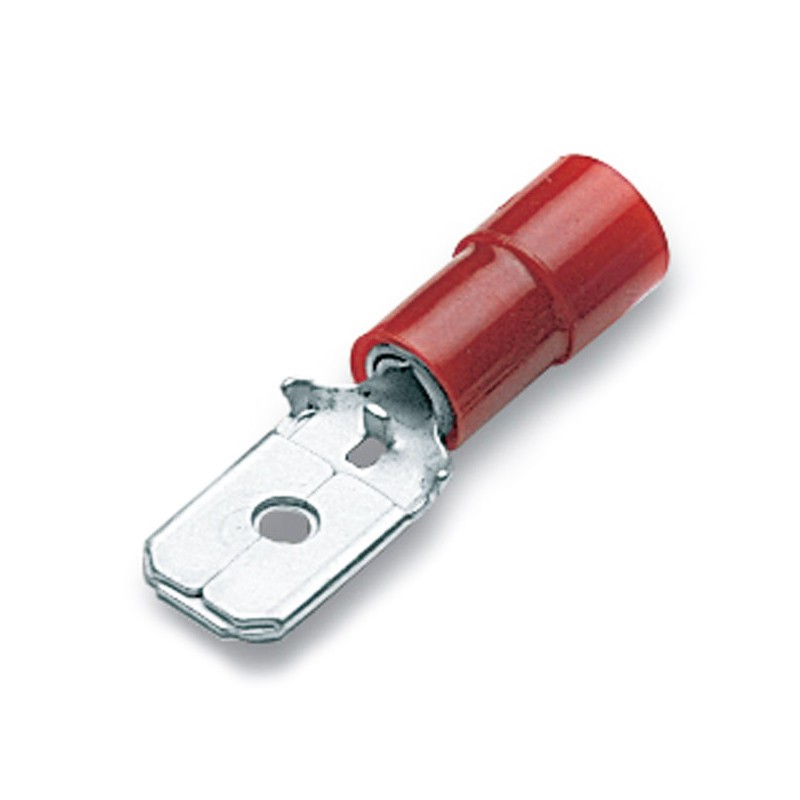

Lugs Cembre-plug male 1,5 mmq 6,35X0,8 pieces 100 RF-M608
CEM RF-M608
8016692002118
Lugs Cembre-plug male, rated cross section 1,5 mmq, Width 6.35 mm, Length 21mm, the height of the hook, 0.8 mm, Red, pack of 100 pieces.
Lugs Cembre-plug male 1,5 mmq 6,35X0,8 pieces 100 RF-M608
€0.08
Tax included
€0.08
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 400
: 80
Pay in installments with Klarna
The plug-in connectors pre-insulated in PCS have been designed to meet the needs of increasingly stringent market regarding the reliability and safety of components for electrical connections.
The plug-in connectors pre-insulated in the PC have the blouse insulating Polycarbonate, a thermoplastic, halogen-free, characterized, among other things, by a molecular structure in particular that gives higher tenacity than PVC and PA6.6.
The connectors are made of brass P-Cu Zn 30 UNI EN 1652 (corresponding to: Cu Zn 30 DIN 17660/1974 ; Cu Zn 30 NF A51-101/1977) and are in Accordance with IEC 760
Blouses insulators are made of PC material, halogen-free characterized by high toughness:
- dielectric strength (KV/mm): >30
- The specific resistance of volume (?/cm) : >1016
- Temp. maximum operating (°C): 115÷130
- Flammability (UL-94) V0
- Density (g/cm3) : 1,2
- Absorption d H2O (%) : 0,15
- Resistance at break (N/mm2) : 65.
There are no reviews
Data sheet
- Type: Terminal lugs
- Section: 1.5mmq
