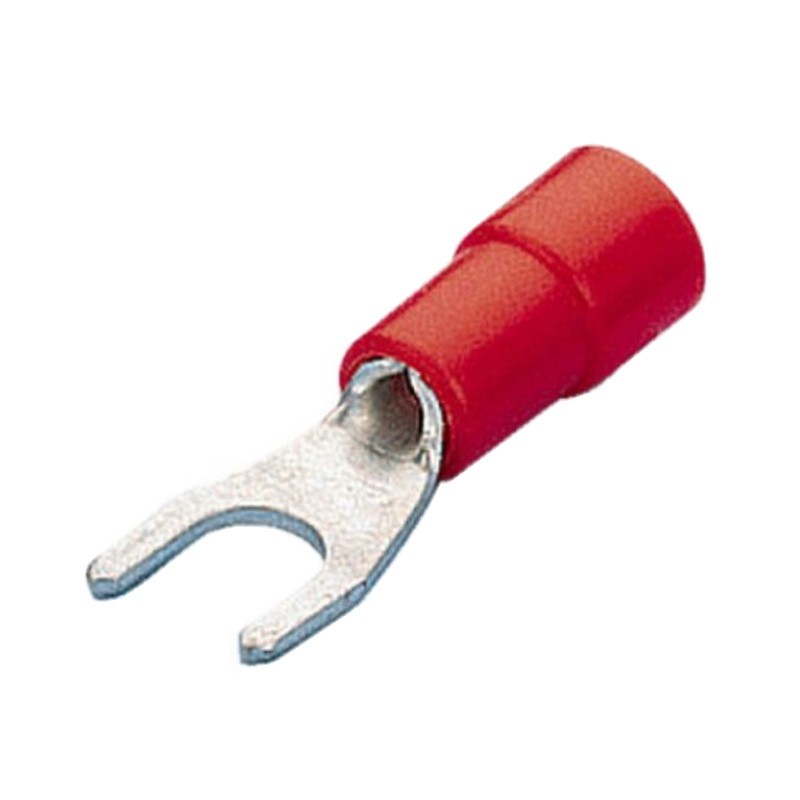

Lugs preisolato Cembre fork 1,5 mmq Diameter 5mm Red RF-U5
CEM RF-U5
8016692034249
Lugs preisolato Cembre fork PVC rated cross section 1.5 mm Diameter 5.3 mm, and the color Red.
Lugs preisolato Cembre fork 1,5 mmq Diameter 5mm Red RF-U5
€0.04
Tax included
€0.04
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 800
The terminal lug of the F-series are made from copper tape ETP, annealed and protected on the surface by tinning electrolyte.
The annealing process optimizes the structural features of the material, which allows a compression to be easier and warrant the use of the lug in the presence of mechanical stresses of various nature. The graining inside of the collar improves the contact with the conductor, increasing the tightness of the traction.
The F-series offers obvious advantages: the unique internal shaping of the blouse insulator, which is in the form of a funnel, is designed so that matching of the step represented by the collar of the lug and thus allow an easy introduction of the conductor. It is not more necessary, therefore, to intervene on the conductor to ricompattarne the elementary wires, which generally tend to strefolarsi after removing lisolante; this results in savings in wiring time. The entire section of the conductor is affected by the compression, thereby achieving a reliable connection both from an electrical point of view the mechanical.
The lugs are made from electrolytic copper Cu-ETP CWOO4A according to the UNI EN 13599, are annealed and protected by tin plating, thickness min. 3µm.
The main characteristics of the blouses insulating PVC:
- dielectric strength (KV/mm): >35
- The specific resistance of volume (?/cm) : >1015
- Temp. maximum operating (°C): 80
- Flammability (UL-94) V0
- Density (g/cm3) : 1,4
- Absorption dH2O (%) : 0,1÷0,6
- Resistance at break (N/mm2) : 45÷50
- Material (Body) electrolytic Copper
- Material (Blouse partially insulation) PVC.
Data sheet
- Diameter:
- 5mm
- Type:
- Terminal lugs
- Section:
- 1.5mmq
