Huawei SUN2000L Hybrid Photovoltaic Inverter 5KTL1 2 MPPT Single Phase ZIGHMK50

Calculate shipping cost

Brand: Huawei

Cod: 860 ZIGHMK50 EAN:

Huawei SUN2000L KTL1 Hybrid Photovoltaic Inverter:

5000W AC power
2 MPPT
Power supply: single phase
RS485, WLAN via WLAN module built into the inverter

Data sheet Huawei ZIGHMK50 IT

Huawei SUN2000L Hybrid Photovoltaic Inverter 5KTL1 2 MPPT Single Phase ZIGHMK50

€1,296.78 Tax included

€1,296.78

Huawei SUN2000L Hybrid Photovoltaic Inverter 5KTL1 2 MPPT Single Phase ZIGHMK50

€1,296.78
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 1

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

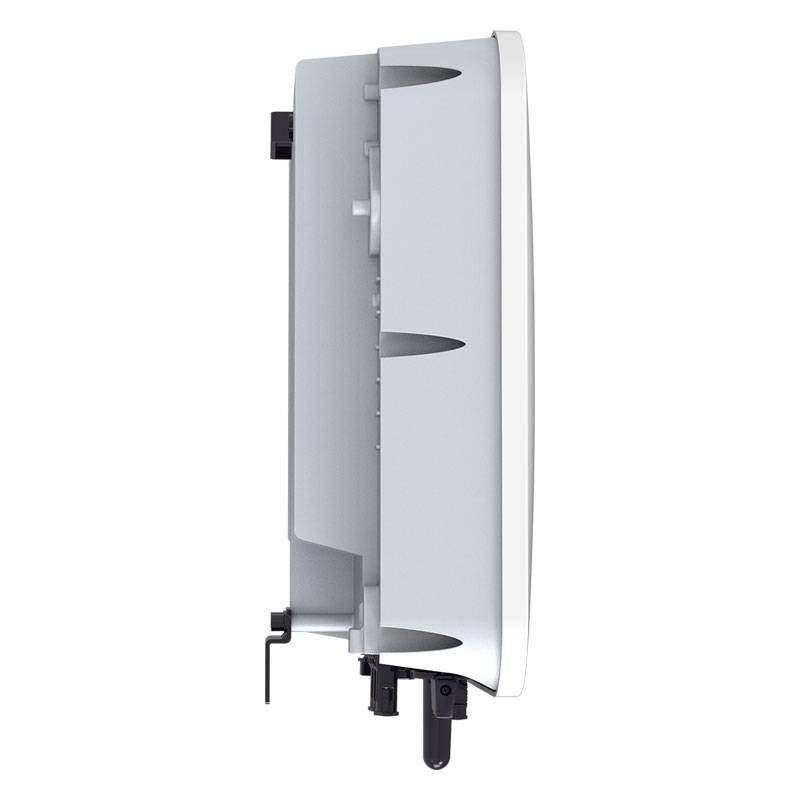

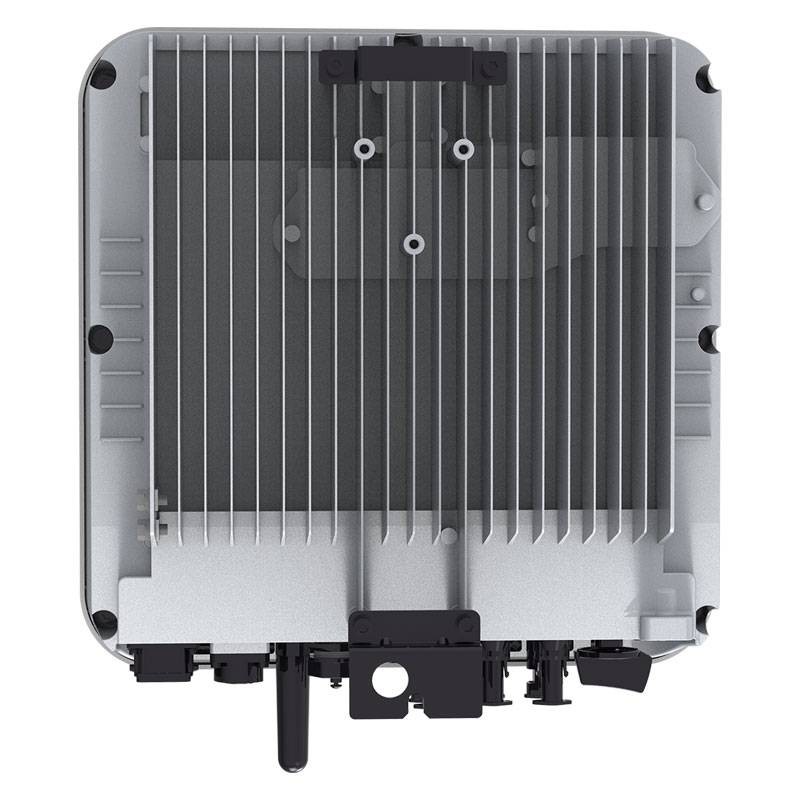

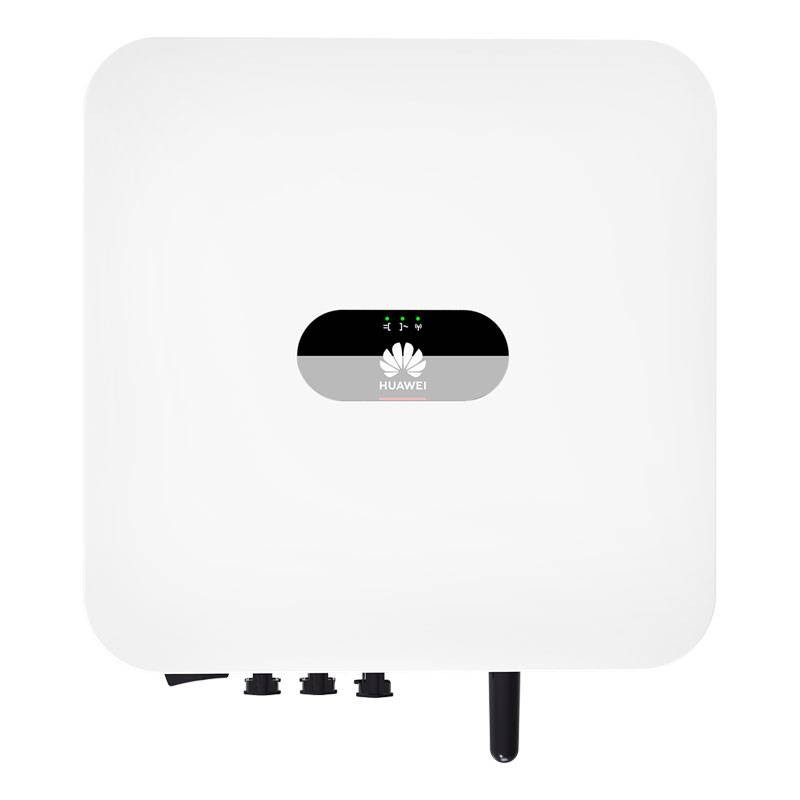

HuaweiSUN2000-XKTL-L1 is the next generation of Huawei inverter for residential installations.

Small, lightweight and stylishly designed, Huawei's single-phase inverter will greatly enhance your home's efficiency and maximize your energy self-consumption.

Advantages:

Efficiency of up to 98.4 percent
Ability to run the new Huawei SUN2000 450P optimizers without lultilization of the safety box
Integrated charge controller for lithium batteries (e.g., LG Resu or Powermate Luna Huawei)
Ability to manage external loads (through smart plug with ZigBee interface) to maximize self-consumption
Huawei SW platform for integrated management of inverters, optimizers, batteries and smart plugs

Active Safety:

AI-based active arc protection.
Detects the location of arc fault

Superior Yield:

Up to 30 percent more power through optimizers
Twice as much power available for battery charging

Better Experience:

Universal optimizer for more efficient management
Auto-mapping of modules in as little as 5 seconds

Double power available for battery:

5kW for AC output +
5kW for battery charging

Features:

Efficiency:

Max. efficiency 98.4 %
European weighted efficiency 97.8 %

Input (PV):

Recommended max PV power 7,500 Wp
Input voltage max 600 V
Start-up voltage 100 V
MPPT operating voltage range 90 V 560 V
Nominal input voltage 360 V
Max. input current for MPPT 12.5 A
Max short-circuit current 18 A
Number of MPP trackers 2
Max. number of inputs 2

Battery input (DC):

LG Chem RESU 7H_R / 10H_R compatible battery.
Operating voltage range 350 ~ 450 Vdc
Max operating current 10 A @7H_R / 15 A @10H_R
Max charging power 3,500 W @7H_R / 5,000 W @10H_R
Max discharge power 7H_R 3,500 W
Maximum discharge power 10H_R 5,000 W
Compatible HUAWEI Smart LUNA2000 ESS Battery 5kWh 30kWh 1
Operating voltage range 350 ~ 560 Vdc
Max operating current 15 A
Maximum charging power 5,000 W
Maximum discharge power 5000W

Output:

Single-phase grid connection
Rated output power 5,000 W
Maximum apparent power 5,500 VA
Nominal output voltage 220 Vac / 230 Vac / 240 Vac
Rated AC mains frequency 50 Hz / 60 Hz
Maximum output current 25A
Adjustable power factor 0.8 capac...0.8 inut
Max. Total Harmonic Distortion ? 3 %
Backup Power Yes (via Backup Box-B0 1)

Protection & Feature:

Anti-islanding protection Yes
DC Reverse Polarity Protection Yes
Insulation monitoring Yes
DC overvoltage protection Yes, compatible with protection class TYPE II according to EN / IEC 61643-11
AC overvoltage protection Yes, compatible with protection class TYPE II according to EN / IEC 61643-11
Residual current monitoring Yes
AC overcurrent protection Yes
AC short-circuit protection Yes
AC overvoltage protection Yes
Overheating protection Yes
AFCI arc-fault protection Yes
Reverse battery charging from the grid Yes

General data:

Operating temperature range: -25/+60 °C
Relative operating humidity 0 %RH?100 %RH
Operating altitude 0 ~ 4,000 m (reduction over 2,000 m)
Cooling Natural convection
Display LED indicators; integrated WLAN + FusionSolar APP
RS485, WLAN communication via WLAN module integrated in the inverter
Ethernet via Smart Dongle-WLAN-FE (optional not included); 4G / 3G / 2G via Smart Dongle-4G (optional not included)
Weight (including mounting bracket) 12.0 kg
Dimensions (including mounting bracket) 365mm x 365mm x 156 mm
Degree of protection IP65
Nighttime power consumption < 2.5W

Standards compliance (others available upon request):

Safety EN/IEC 62109-1, EN/IEC 62109-2
Standard grid connections G98, G99, EN 50549-1, IEC 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727, IEC62116
