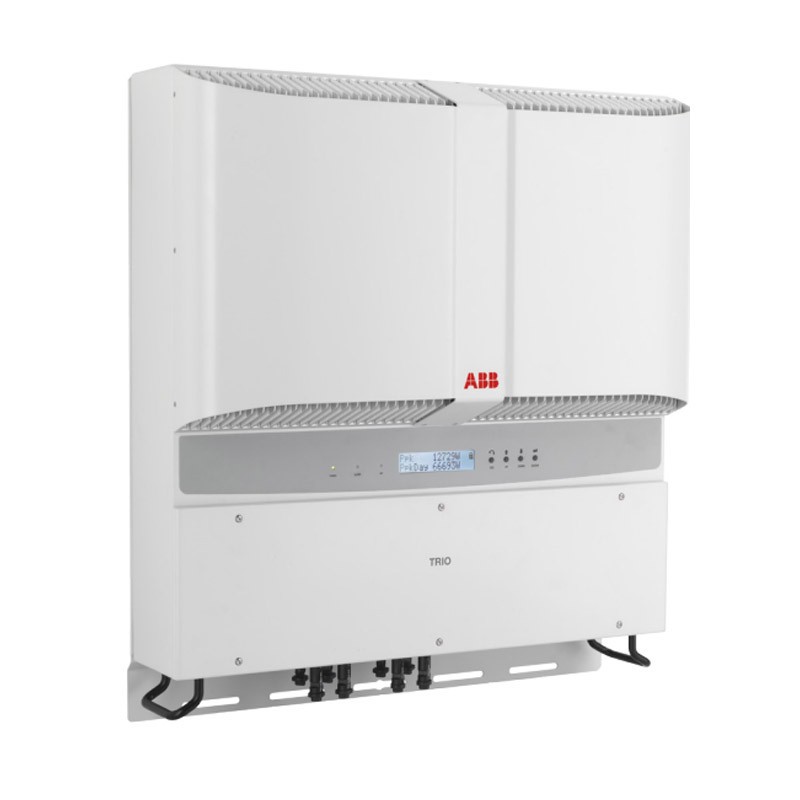

ABB PVI 10.0KW TL-OUTD-S three-phase PV inverter with disconnect switch
06R 3N81990S000A
8054529631025
ABB (Power One Italia) PVI-10.0-TL-OUTD-S Number 2 independent MPPT three-phase PV inverter, model with integrated DC disconnect, Designed for commercial use, this three-phase inverter stands out for its ability to control the performance of PV panels, especially during periods of varying environmental conditions.
ABB PVI 10.0KW TL-OUTD-S three-phase PV inverter with disconnect switch
€1,901.07
Tax included
€1,901.07
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
The fast and accurate MPPT algorithm allows real-time power tracking and better energy harvesting.
Two independent MPPTs and an efficiency rating of up to 97.8% This transformerless device has two independent MPPTs and an efficiency rating of up to 97.8%.
Flat efficiency curves guarantee high efficiency at all output levels ensuring a constant and stable performance over the entire input voltage and output power range.
The wide input voltage range makes the inverter suitable for low power systems with a reduced string format.
Main features:
- DC/AC conversion unit with three-phase bridge topology
- Topology without transformer
- Each inverter is programmed with specific grid standards that can be installed directly in the field.
- Wide input voltage range
- Double input section with independent MPPT tracking, allows an optimal energy collection even in case of strings oriented in different directions
- Integrated DC isolating switch in accordance with international standards (-S and -FS versions)
- Natural convection cooling for maximum reliability
- Outdoor casing for use in any environmental condition
- RS- 485 communication interface (for connection to laptops or data loggers)
TECHNICAL SPECIFICATIONS:
ENTRANCE:
- Maximum absolute DC input voltage 900 V
- Activation voltage DC input 360 V (adj. 250...500 V)
- Operating range DC input voltage 0.7 x Vstart...850 V (min 200 V)
- Nominal DC input voltage 580 V
- Nominal DC input power 10300 W
- Number of independent MPPTs 2
- Maximum DC input power per MPPT 6500 W
- DC voltage range with MPPT configuration in parallel to P 300...750 V
- DC power limitation for each MPPT with independent MPPT configuration at Pacr, example of maximum imbalance 6500 W [380 V≤VMPPT≤750 V] other channel: Pdcr-6500 W [225 V≤VMPPT≤750 V] other channel
- Maximum DC input current (Idcmax) / per MPPT (IMPPTmax) 34.0 A / 17.0 A
- Maximum input short circuit current for each MPPT 22.0 A
- Number of DC input connection pairs per MPPT 2
- DC connection type Quick plug-in PV connector
EXIT:
- Type of AC connection to the network Three-phase 3-wire PE or 4-wire PE
- Nominal AC output power 10000 W
- Maximum AC output power 11000 W
- Maximum apparent power 11500 VA
- Rated output AC voltage 400V
- AC output voltage range 320...480 V
- Maximum AC output current 16.6 A
- Short-circuit current contribution 19.0 A
- Rated output frequency 50 Hz / 60 Hz
- Output frequency range 47...53 Hz / 57...63 Hz
- Total current harmonic distortion
There are no reviews
Data sheet
- Type: Inverter
- Power: 6 to 10KW
- MPPT: 2
