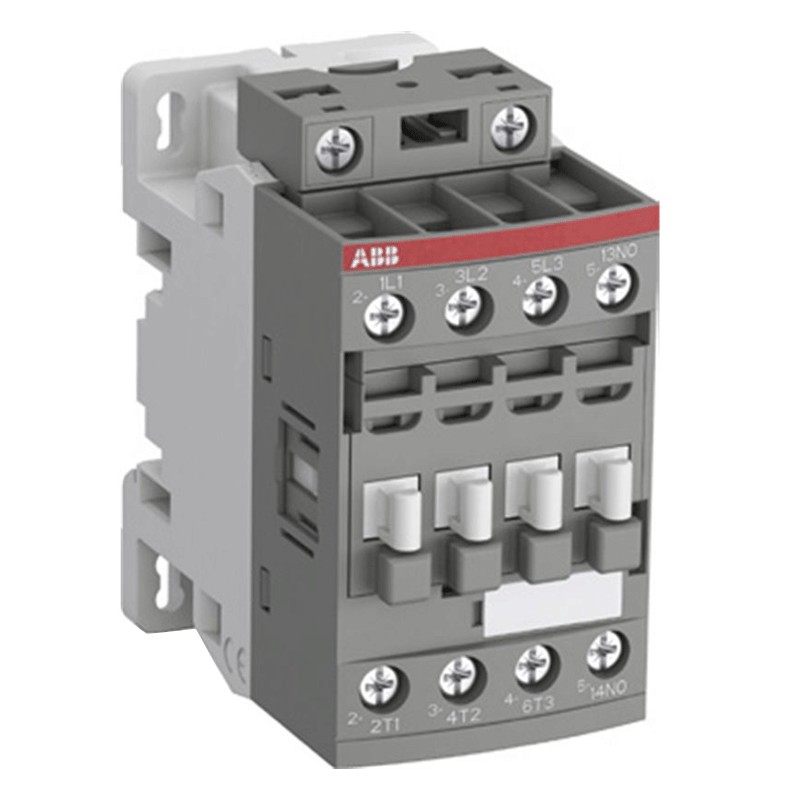

ABB 3-pole contactor 18A 24-60V a.c./d.c. AF16301011
ABB AF16301011
3471523110618
Abb contactor, with the following characteristics:
- Rated operating voltage Auxiliary circuit 690 V, Main circuit 690 V
- Rated operating voltage control circuit DC 24-60 Vac
- 3 poles
- DIN connection (universal for any switchboard on the market)
- Rated frequency auxiliary circuit 50 / 60 Hz, main circuit 50 / 60 Hz
- Operating current 18 amperes
ABB 3-pole contactor 18A 24-60V a.c./d.c. AF16301011
€37.43
Tax included
€37.43
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 68
: 9
Pay in installments with Klarna
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Rated operating voltage Auxiliary circuit 690 V, Main circuit 690 V
- Rated operating voltage control circuit DC 24/60 Vac
- Operating current 18 amperes
- Rated main circuit frequency 50/60Hz
- 3 poles
- Number of NO main contacts 3
- Number of NC main contacts 0
- Number of NO auxiliary contacts 1
- Number of NC auxiliary contacts 0
- Type of terminal Screw Terminals
- Degree of protection auxiliary terminals IP40, coils IP20, main terminals IP20

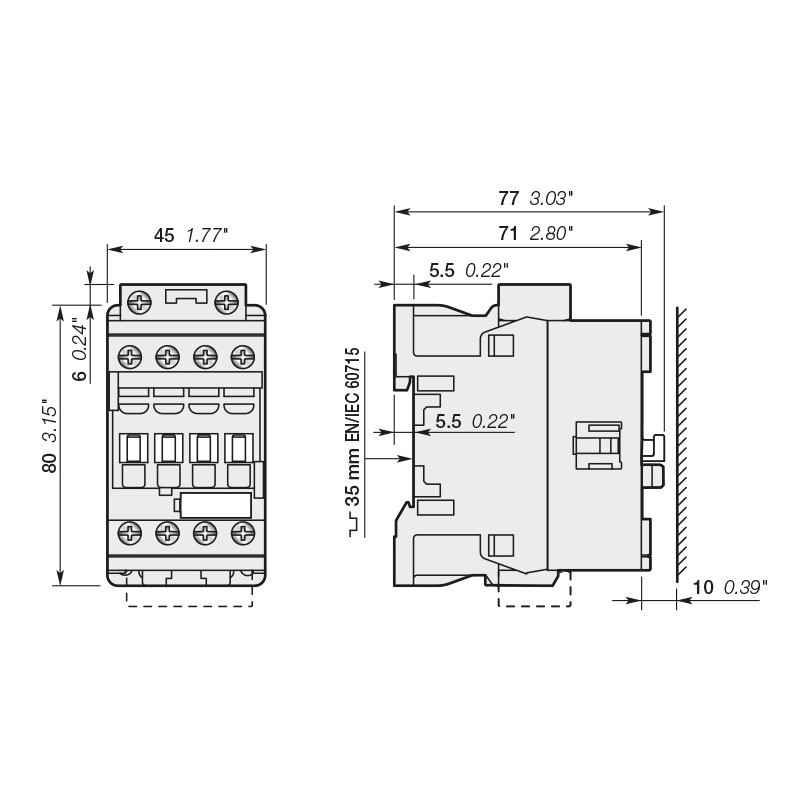

- Width 45 mm
- Product depth 77 mm
- Product height 86 mm
- Product net weight 0.27 kg
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 24/60V
- Poles: 3P
- Amps: 18A
