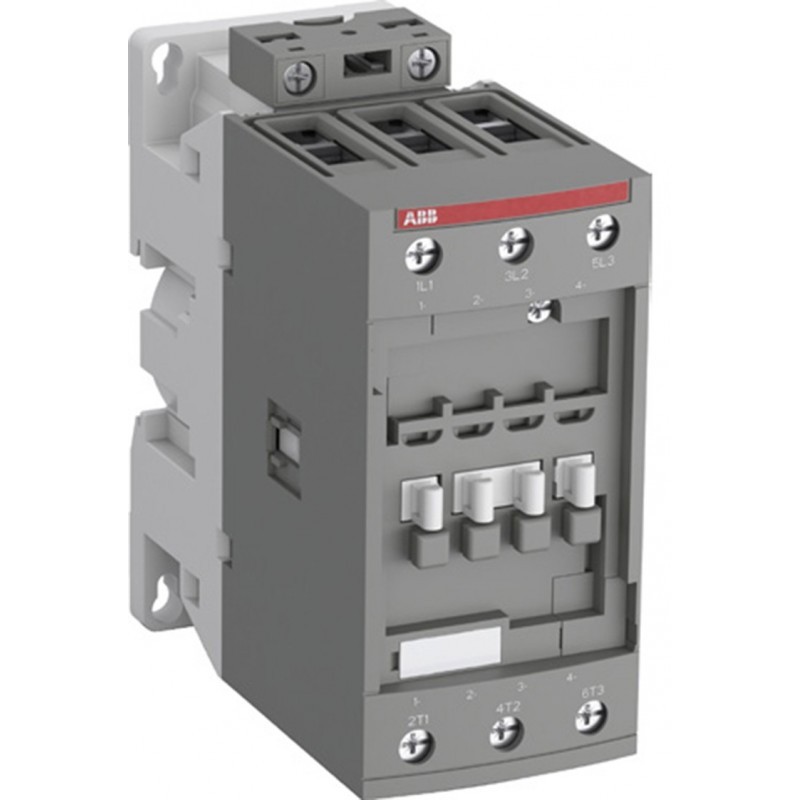

ABB 3-pole contactor 38A 100-250V a.c./d.c. AF38300013
ABB AF38300013
3471523111530
Abb contactor, with the following characteristics
- Rated main circuit operating voltage 690 Vac
- Rated control circuit operating voltage DC 100-250V
- 3 poles
- DIN connection (universal for any switchboard on the market)
- Main circuit rated frequency 50/60 Hz
- Operating current 38 amperes
ABB 3-pole contactor 38A 100-250V a.c./d.c. AF38300013
€90.92
Tax included
€90.92
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 28
: 2
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Rated main circuit operating voltage 690 V
- Rated voltage control circuit operation DC 100-250V
- Operating current 38 amperes
- Rated main circuit frequency 50/60Hz
- 3 poles
- Number of NO main contacts 3
- Number of NC main contacts 0
- Number of NO auxiliary contacts 0
- Number of NC auxiliary contacts 0
- Type of terminal Screw Terminals
- Coilprotection IP20,main terminals IP20
- Product width 45 mm
- Product depth 86 mm
- Product height 86 mm
- Product net weight 0.31 kg
There are no reviews
Data sheet
- Type:
- Contactors
- Voltage:
- 100/250VAC
- Poles:
- 3P
- Amps:
- 38A
