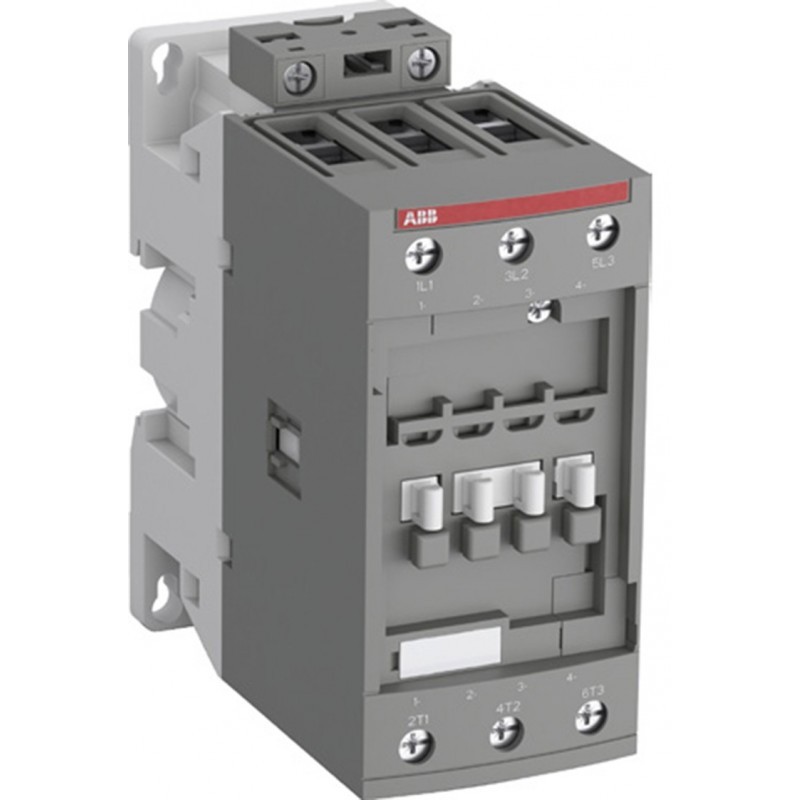

ABB 3-pole contactor 65A 100-250V a.c./d.c. AF65300013
ABB AF65300013
3471523132634
Abb contactor, with the following characteristics
- Rated main circuit operating voltage 690 Vac
- Nominal voltage control circuit DC operation 100-250Vac
- 3 poles
- DIN connection (universal for any switchboard on the market)
- Main circuit rated frequency 50/60 Hz
- Operating current 65 amperes
ABB 3-pole contactor 65A 100-250V a.c./d.c. AF65300013
€168.02
Tax included
€168.02
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
: 3
Pay in installments with Klarna
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Rated main circuit operating voltage 690 Vac
- Rated voltage control circuit operation DC 100-250Vac
- Operating current 65 amperes
- Main circuit rated frequency 50/60Hz
- 3 poles
- Number of NO main contacts 3
- Number of NC main contacts 0
- Number of NO auxiliary contacts 0
- Number of NC auxiliary contacts 0
- Type of terminal Screw Terminals
- Coil protection IP20,main terminals IP10
- Product width 55 mm
- Product depth 111 mm
- Product height 125.5 mm
- Product net weight 0.97 Kg
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 100/250VAC
- Poles: 3P
- Amps: 65A
