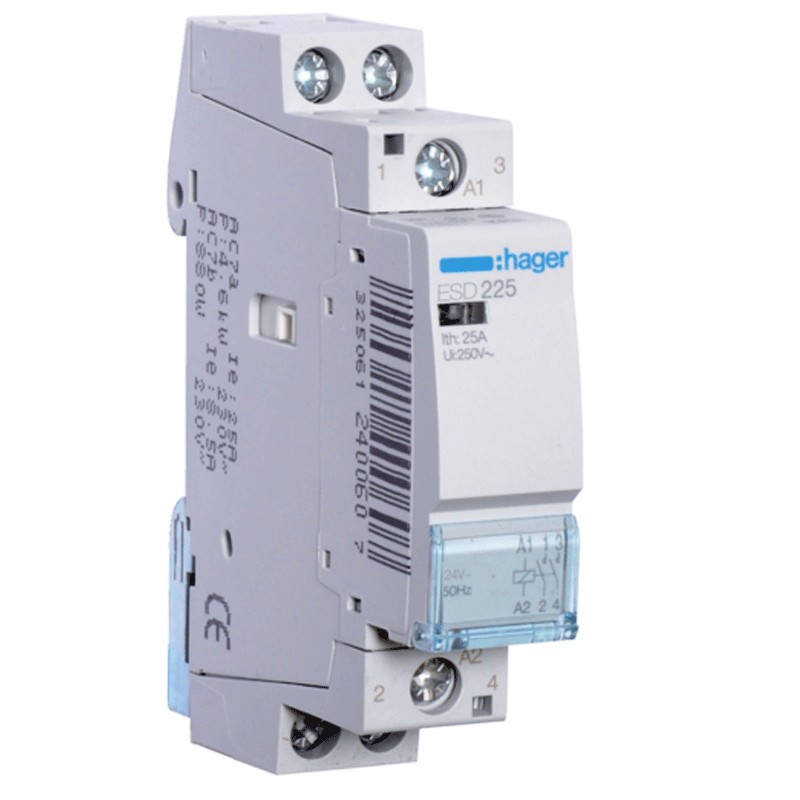

Hager ECO Contactor 25A 2NA 24VAC 1 module ESD225
HAG ESD225
3250612400584
Hager ECO contactor with the following features:
- Control system voltage AC 24Vac
- Frequency 50 Hz
- 1 module
- 2 poles
- Contact type 2NO
- DIN connection (universal for any switchboard on the market)
- Rated current 25 amperes
Hager ECO Contactor 25A 2NA 24VAC 1 module ESD225
€39.81
Tax included
€39.81
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 23
: 11
Pay in installments with Klarna
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Hager Series
- Control system voltage AC 24 Vac
- Operating voltage AC 230 V
- Rated current 25 amperes
- 1 module
- 2 poles
- Contact type 2NO
- Frequency 50 Hz
- Rated insulation voltage 250 V
- Rated impulse withstand voltage 4 kV
- Electric endurance in number of cycles 30000
- Depth of installed product 60 mm
- Height of installed product 83 mm
- Width of installed product 17.85 mm
- Tightening torque 1.2 Nm
- Protection index IP2X
- Type of connection with screw
Data sheet
- Type: Contactors
- Voltage: 24VAC
- Modules: 1
- Poles: 2P
- Amps: 25A
