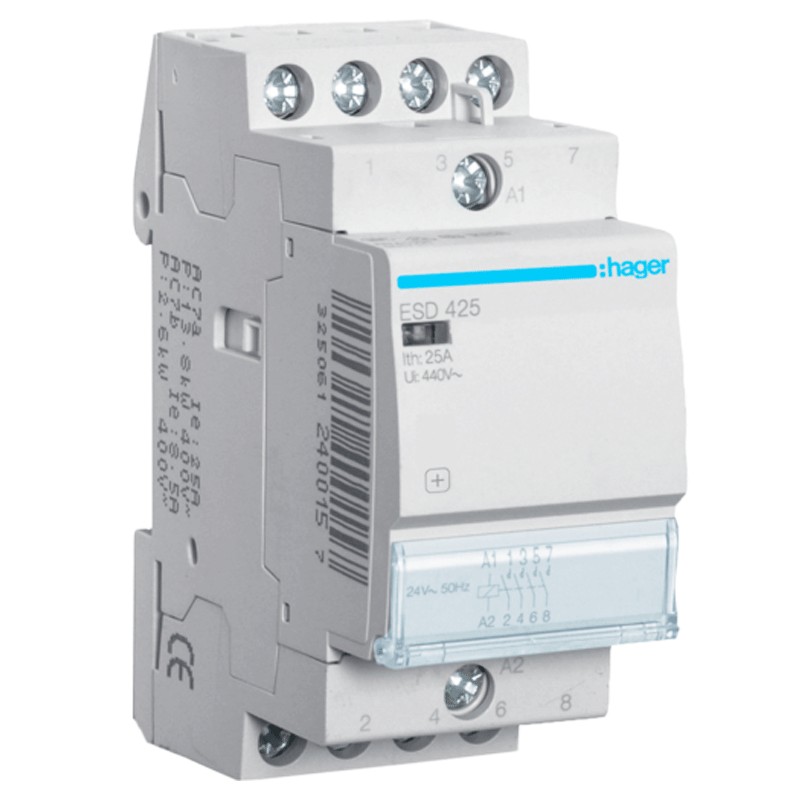

Contactor Hager 25A 4NA 24VAC ECO 2 module ESD425
HAG ESD425
3250612400898
Hager ECO contactor with the following features:
- Control circuit voltage AC 24Vac
- Rated frequency 50 Hz
- 2 modules
- 4 poles
- Contact type 4NA
- DIN connection (universal for any switchboard on the market)
- Rated operational current 25 amperes
Contactor Hager 25A 4NA 24VAC ECO 2 module ESD425
€43.08
Tax included
€43.08
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
: 3
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Hager Series
- Control circuit voltage AC 24 Vac
- Nominal operating voltage AC 230 V
- Rated operational current 25 amperes
- 2 modules
- 4 poles
- Type of contact 4NO
- Rated frequency 50 Hz
- Rated insulation voltage 440 V
- Rated fault withstand current 4 kV
- Electrical life and number of cycles 30000
- Depth of installed product 60 mm
- Height of installed product 83 mm
- Width of installed product 35.75 mm
- Tightening torque 1.2 Nm
- Degree of protection IP2X
- Type of connection screw terminal
There are no reviews
Data sheet
- Type:
- Contactors
- Voltage:
- 24VAC
- Modules:
- 2
- Poles:
- 4P
- Amps:
- 25A
