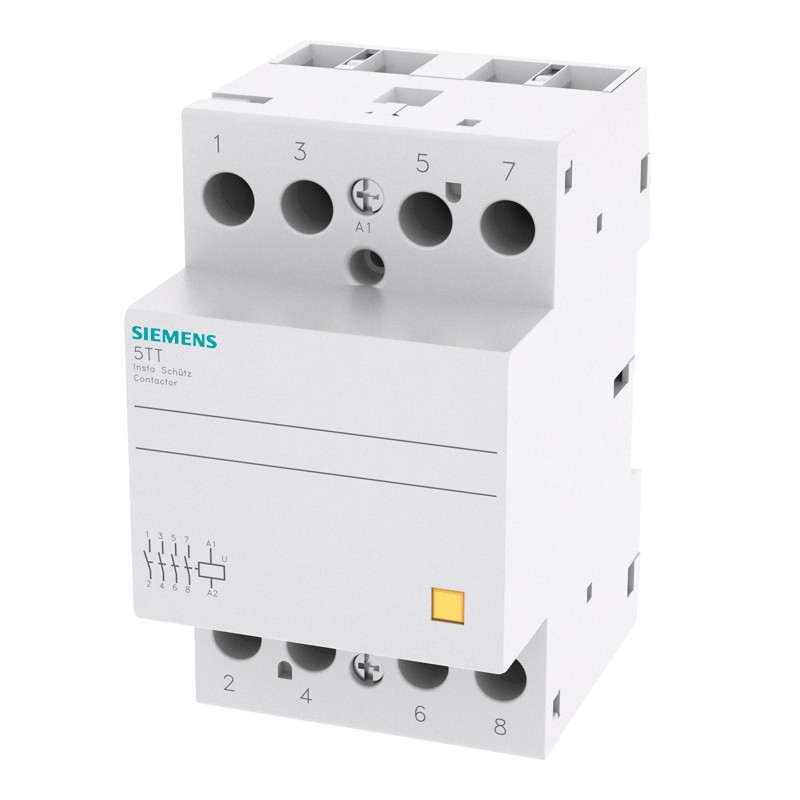

Contactor Siemens 63A 4NO 230VAC/DC 3 modules 5TT50500
SIE 5TT50500
4001869435268
Siemens contactor with the following characteristics
- Control supply voltage (nominal value 230 V, nominal value / max. 230 V, with DC nominal value 220 V)
- 3 modules
- 4 poles
- DIN connection (universal for any switchboard on the market)
- Contact type 4NO
- Operating current 63 amperes
Contactor Siemens 63A 4NO 230VAC/DC 3 modules 5TT50500
€79.23
Tax included
€79.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 65
Pay in installments with Klarna
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Siemens series
- Operating voltage min 400V max 400V
- Control supply voltage (nominal value 230 V, nominal value / max. 230 V, with DC / nominal value 220 V)
- Operating current 25A
- 3 modules
- 4 poles
- Contact type 4NO
- Degree of protection IP20
- Height 90 mm
- Width 53,5 mm
- Depth 71 mm
- Recessed depth 64 mm
- Net weight 150 gr
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Modules: 3
- Poles: 4P
- Amps: 63A
