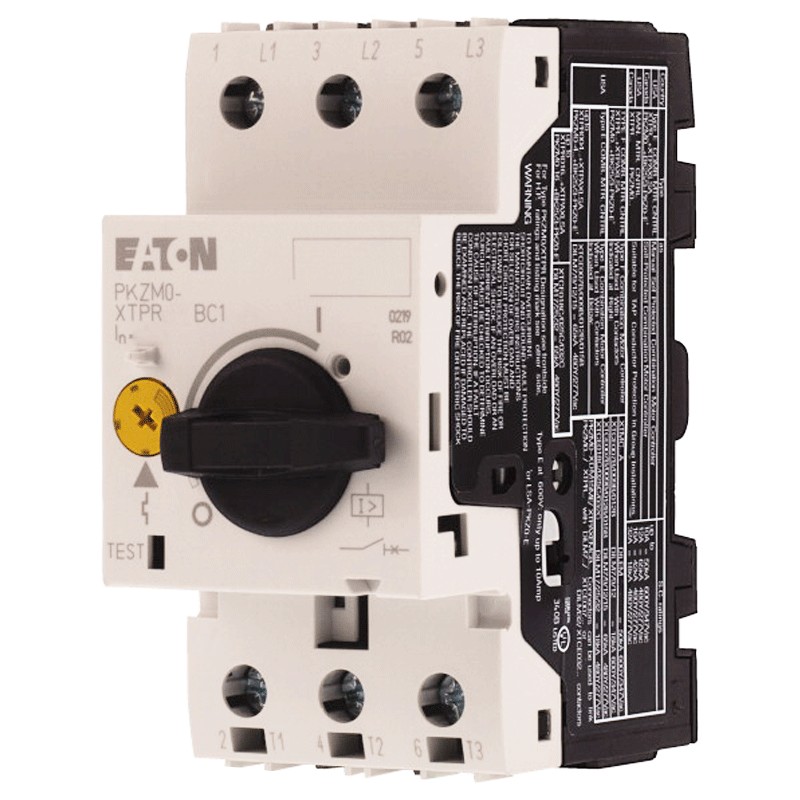

Eaton motor protection circuit breaker 3P 32A 278489
EAO 278489
4015082784898
Switch for Eaton motor protection, with the following characteristics:
- 3 poles - size PKZM0
- With adjustable thermal release and instantaneous magnetic release
- Rated operational voltage Ue 690V
- Rated impulse withstand voltage [Uimp] 6000 Vac
- Rated operational current 32A
- Rated frequency 40 - 60 Hz
- Short circuit resistance 40 kA
Eaton motor protection circuit breaker 3P 32A 278489
€121.62
Tax included
€121.62
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
: 2
Pay in installments with Klarna
The motor protection switch is installed on the cable that feeds the motor and, when the motor stops due to a mechanical effect or (in three-phase systems) because a phase is missing, it detects an excessive absorption and automatically cuts off the electrical energy, thus safeguarding the integrity of the motor.
Features:
- Eaton series
- 3 poles - size PKZM0
- With adjustable thermal release and instantaneous magnetic release
- Phase failure sensitive
- Screw or snap-in fixing
- With screw terminals
- Dome mounting dimensions 45 mm
- Rated operational voltage Ue 690V
- Degree of protection device IP20
- Degree of protection of connection terminals IP00
- Ambient temperature storage -40 - 80 °C
- Ambient temperature daytime -25 - +55 °C
- Ambient temperature in housing - 25 - 40 °C
- Altitude max 2000 mm
- Main conductor connection sections single-wire or stranded screw terminals 18 - 10 AWG
- Main conductor connection sections screw terminals stripping length 10 mm
- Tightening torque for connection screws Main circuit 1.7 Nm
- Tightening torque of the connection screws Auxiliary circuit 1 Nm
- Rated impulse withstand voltage [Uimp] 6000 Vac
- Overvoltage category/pollution degree III/3
- Rated operational current 32A
- Rated frequency 40 - 60 Hz
- Short-circuit resistance 40 kA
- Ambient operating temperature min -25 °C
- Ambient operating temperature max. +55 °C
- Height 93 mm
- Width 45 mm
- Depth 76 mm
There are no reviews
Data sheet
- Type: Motor protection
- Modules: 3
- Poles: 3P
- Power: 50KA
- Amps: 25-32A
