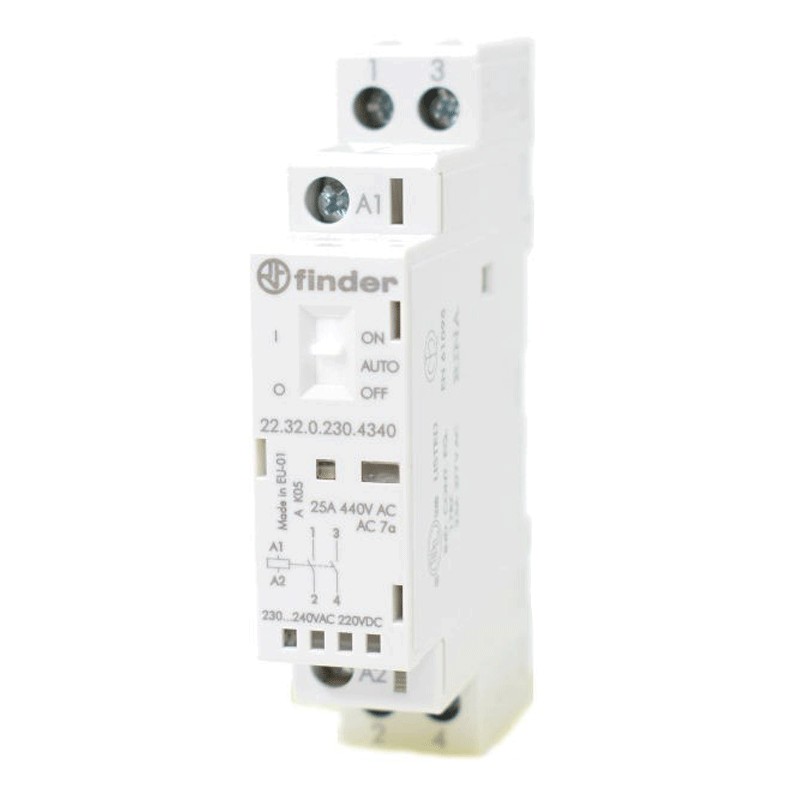

Finder contactor DIN 2 contacts NO 22.32.0.230.4340
FIN 223202304340
8012823354576
Finder contactor, with the following characteristics:
- Operating voltage 250/440 Vac
- 1 module
- 2 poles
- DIN connection (universal for any switchboard on the market)
- Contact type 2NO
- Operating current 25 amperes
Finder contactor DIN 2 contacts NO 22.32.0.230.4340
€29.99
Tax included
€29.99
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 169
: 32
Pay in installments with Klarna
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Finder Series
- Operating voltage 250/440 Vac
- Operating current 25A
- 1 module
- 2 poles
- Contact type 2NO
- Width 17.5 mm
- NO contact opening ≥ 3 mm, double breakage
- Coil and contacts for continuous duty
- Silent AC/DC coil (with protective varistor)
- Protective separation between coil and contacts (reinforced insulation)
- Standard version with mechanical indicator and LED
- Version with Auto-On-Off selector switch
- Complies with standard EN 61095: 2009
- Module with auxiliary contacts with "QuickMounting" coupling to contactor (versions with 1NO + 1NC and 2NO)
- Suitable for railway applications; plastic materials in compliance with fire and smoke regulations (EN 45545-2:2013)
- Mounting on 35mm DIN rail (EN 60715)
- IP20 degree of protection
ras fonctionne bien et produit reçu conforme à la commande
Buona qualità, del resto Finder è una garanzia
Data sheet
- Type: Contactors
- Voltage: 250/440VAC
- Modules: 1
- Poles: 2P
- Amps: 25A
