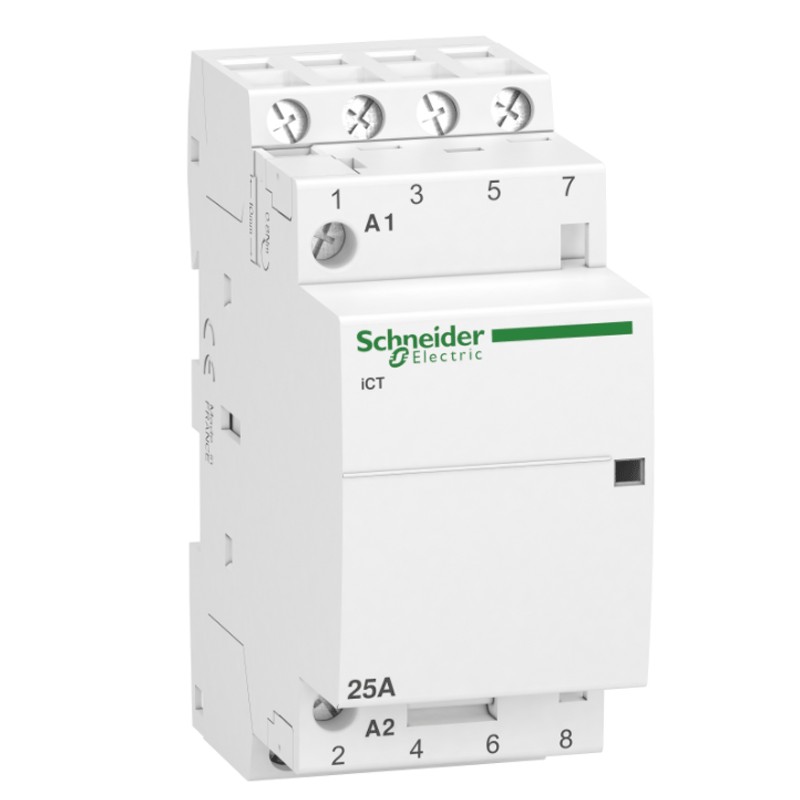

Schneider contactor 25A 4NA 230VAC 2 modules A9C20834
SNR A9C20834
3606480088599
Schneider Acti 9 iCT contactor with the following features:
- Control system voltage 220/240 Vac
- Frequency 50 Hz
- 2 modules
- 4 poles
- Type of contact 4NO
- DIN connection (universal for any switchboard on the market)
- Rated current 25 amperes
Schneider contactor 25A 4NA 230VAC 2 modules A9C20834
€65.56
Tax included
€65.56
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 63
: 5
Pay in installments with Klarna
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Hager Series
- Control system voltage AC 220...240Vac
- Operating voltage AC 250V
- Rated current 25 amperes
- 2 modules
- 4-poles
- Contact type 4NO
- Mains frequency 50 Hz
- Rated insulation voltage 500 V
- Rated impulse withstand voltage 4 kV
- Mounting mode clip-on
- Mounting support 35 mm symmetrical DIN rail
- Height 81 mm
- Width 36 mm
- Depth 60 mm
- Colour white
- Mechanical lifespan 1000000 cycles
- Tightening torque 0,8 Nm
- Protection IP20
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Modules: 2
- Poles: 4P
- Amps: 25A
