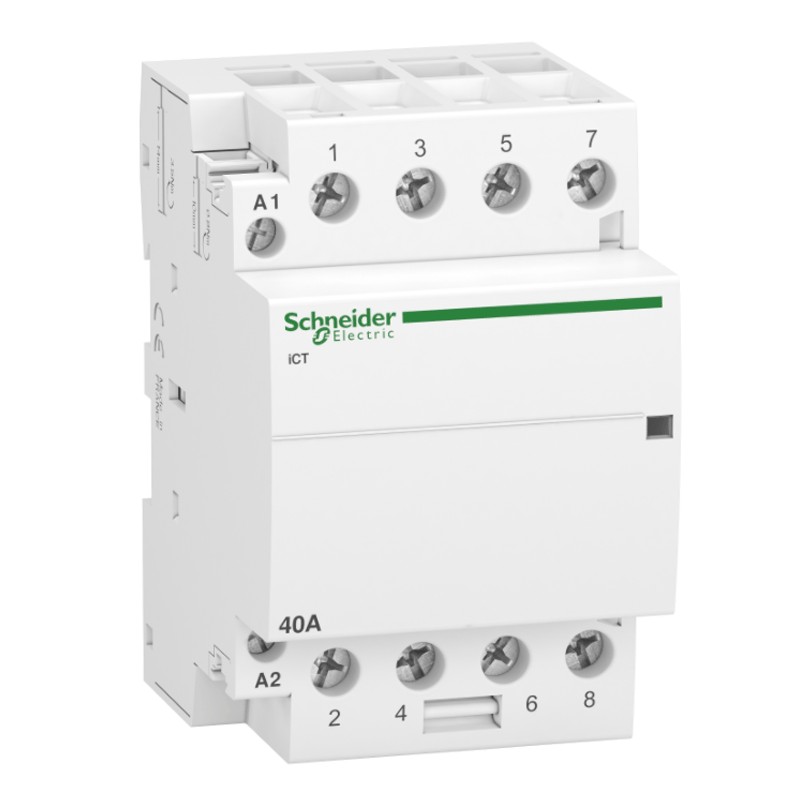

Schneider contactor 40A 4NA 230VAC 3 modules A9C20844
SNR A9C20844
3606480088629
Schneider Acti 9 iCT contactor with the following features:
- AC control voltage 220/240 Vac
- Mains frequency 50 Hz
- 3 modules
- 4 poles
- Type of contact 4NO
- DIN connection (universal for any switchboard on the market)
- Rated operational current 40 amperes
Schneider contactor 40A 4NA 230VAC 3 modules A9C20844
€128.18
Tax included
€128.18
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 22
: 2
Pay in installments with Klarna
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Hager Series
- Control voltage AC 220...240Vac
- Nominal operating voltage AC 250V
- Rated operational current 40 amperes
- 3 modules
- 4 poles
- Contact type 4NO
- Mains frequency 50 Hz
- Rated insulation voltage 500 V
- Rated impulse withstand voltage 4 kV
- Mounting method
- Mounting bracket for 35 mm symmetrical DIN rail mounting
- Height 85 mm
- Width 54 mm
- Depth 60 mm
- Colour white
- Mechanical life 1000000 cycles
- Tightening torque: Control circuit: 0.8 Nm - Power circuit: 3.5 Nm
- Degree of protection IP20
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Modules: 3
- Poles: 4P
- Amps: 40A
