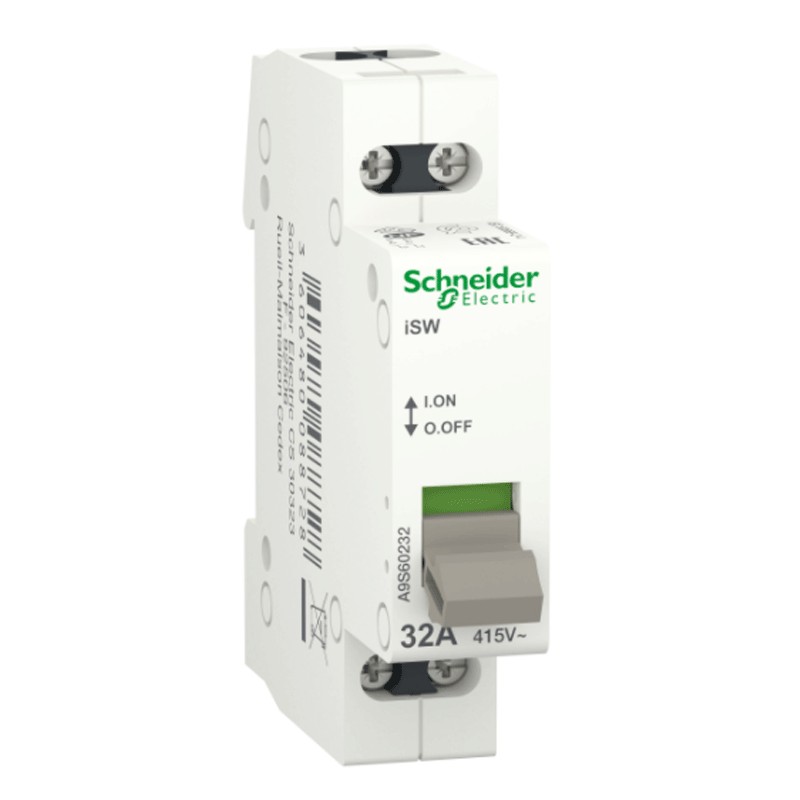

Schneider switch disconnector 2P 32A 1 module A9S60232
SNR A9S60232
3606480088728
Schneider switch-disconnector, with the following characteristics:
- Rated operating voltage 415 Vac
- Rated frequency 50/60 Hz
- Rated insulation voltage 500 Vac
- Rated operational current 32A
- 2 poles
- 1 module
- Degree of protection of the enclosure IP4
- Mounting method fixed
- Support for DIN rail mounting
Schneider switch disconnector 2P 32A 1 module A9S60232
€20.59
Tax included
€20.59
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 138
: 10
Pay in installments with Klarna
Thedisconnector, otherwise called voltage isolator, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.
Characteristics:
- Schneider series
- Rated operating voltage 415 Vac
- Rated frequency 50/60 Hz
- Rated insulation voltage 500 Vac
- Rated operational current 32A
- Rated impulse withstand voltage 4 kV
- Type of lever control
- Local ON/OFF indication
- Fixed mounting type
- 2 poles
- 1 module
- Enclosure protection degree IP4
- Support for DIN rail mounting
- Height 77 mm
- Width 18 mm
- Depth 70 mm
- Colour white
- Mechanical life 300000 cycles
- Electrical life 30000 cycles
- Wire stripping length 9 mm
- Tightening torque 1,2 Nm
- Pollution degree 2
- Tropicalisation 2
- Relative humidity 95 % at 55 °C
- Operating ambient temperature -20...50 °C
- Storage temperature -40...70 °C
Tra tutti i dispositivi modulari Schneider, i sezionatori da 20 e 32 A sono quelli dall'aspetto esteriore più economico e montati su guida DIN non sono "allineati" con gli altri dispositivi di questo marchio ma rientrano di qualche millimetro. Il costo è comunque molto basso ma fanno quello che devono fare senza alcun problema.
Data sheet
- Voltage: 415VAC
- Modules: 1
- Poles: 2P
- Amps: 32A
- Circuit Protections: Disconnectors
- Operating voltage: AC
