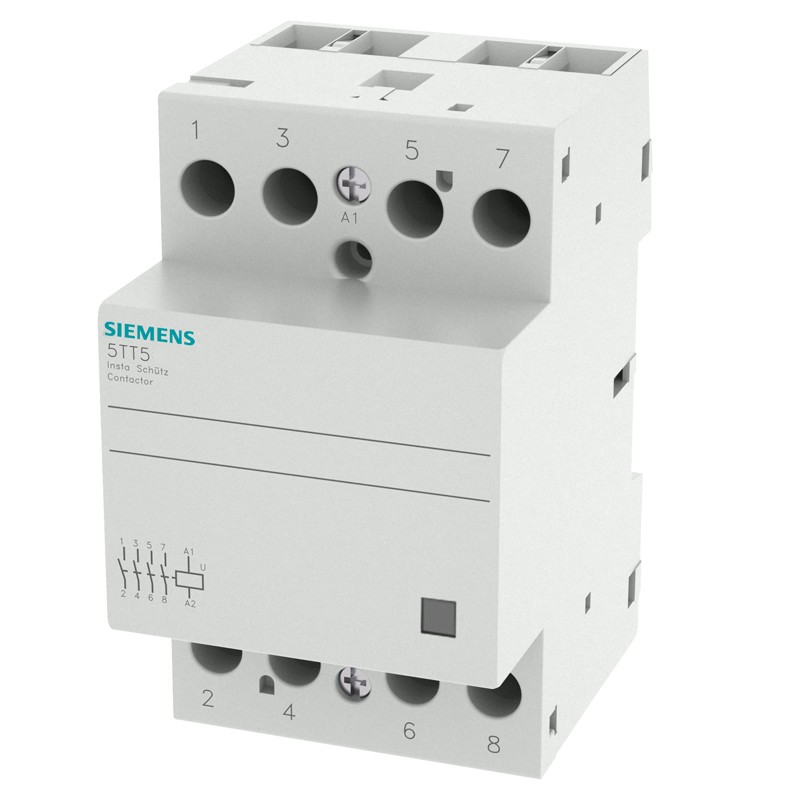

Siemens contactor 40A 4NA 230VAC 3 modules 5TT58400
SIE 5TT58400
4001869344065
Siemens contactor, with the following characteristics
- Control supply voltage (nominal value / max. 230 Vac)
- 3 modules
- 4 poles
- DIN connection (universal for any switchboard on the market)
- Contact type 4NO
- Operating current 40 amperes
Siemens contactor 40A 4NA 230VAC 3 modules 5TT58400
€60.62
Tax included
€60.62
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 150
: 15
Pay in installments with Klarna
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Siemens series
- Operating voltage min 440Vmax 440Vac
- Control supply voltage (nominal value / max. 230 Vac)
- Operating current 40A
- 3 modules
- 4 poles
- Contact type 4NO
- Degree of protection IP20
- Height 90 mm
- Width 54 mm
- Depth 71 mm
- Recessed depth 0 mm
- Net weight 393 gr
Materiale ben descritto e conforme . Nessun problema ottime le schede tecniche e istruzioni
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Modules: 3
- Poles: 4P
- Amps: 40A
