Inverter for photovoltaic Riello Aros RS15.0T 15.0KW 2 MPPT Three Phase WIFI 6PS315KB
ARO 6PS315KB

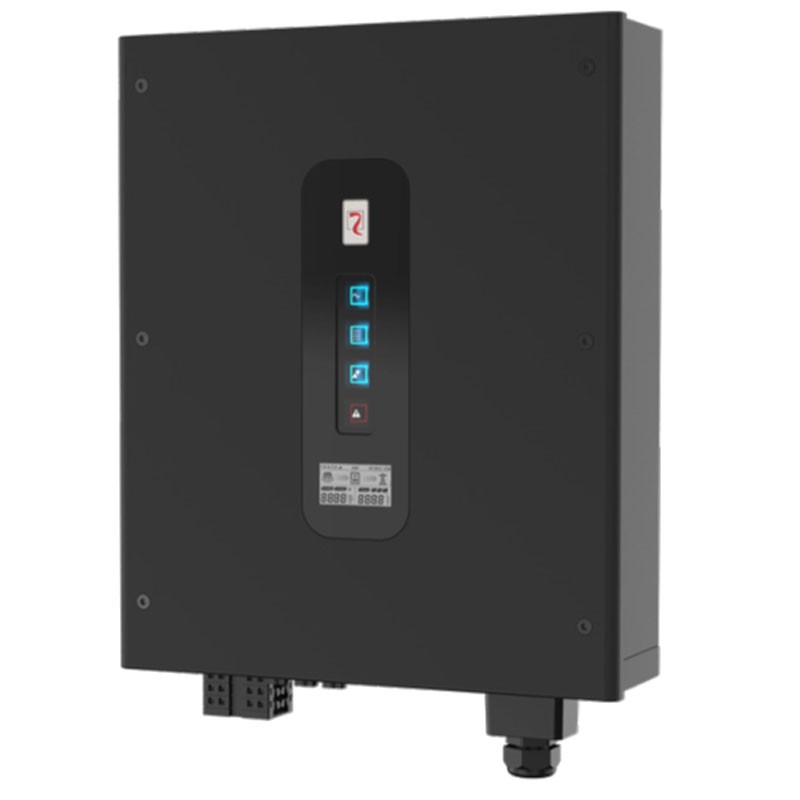

Riello Aros RS15.0T 15.0KW photovoltaic inverter:
- Transformerless
- Maximum efficiency up to 98.00%
- European efficiency up to 97.50%
- IP65 degree of protection for outdoor installation
- Redundant control and protection devices wide MPPT range
- Integrated dual-channel Wi-Fi
- Convention cooling technology
- LED status display + LCD divided into data sections
- Built-in RS485
Inverter for photovoltaic Riello Aros RS15.0T 15.0KW 2 MPPT Three Phase WIFI 6PS315KB
€2,338.58
Tax included
€2,338.58
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
Riello Solartech the evolution continues: here is the new range of high-performance three-phase transformerless inverters. Riello Solartech, a brand of the Italian Riello Elettronica Group, presents to the market the new series of three-phase photovoltaic inverters that implement the range of single-phase residential inverters. Extremely compact and lightweight, Riello Solartech's new RS three-phase inverters are available in power ratings ranging from 6 to 30 kW and benefit from a completely new technology with the highest quality components, the result of the work of the company's Research and Development team, which guarantee maximum product reliability and allow them to achieve high efficiency in all operating conditions.
Top Technology:
- Other features of Riello Solartech's new RS T three-phase inverters include DC-side disconnect, DC and AC type II arresters, multiple inputs for maximum string optimization that converge on the two independent MPPT trackers characterized by a wide voltage range; all in order to always ensure maximum configuration flexibility, yield optimization and extended energy production time. RS T models integrate natural ventilation (up to 15 kW) with appropriate heat sinks to ensure maximum heat exchange or forced ventilation (for 20 to 30 kW models) with speed-controlled extraction fans with reference to operating conditions, to minimize losses
- Innovative digital control of all power stages ensures low sensitivity to grid disturbances, preventing unwanted disconnections in the presence of variations or micro interruptions. Connected via App or Cloud, Riello Solartech RS T inverters feature a unique and innovative design
- The aluminum case makes them particularly lightweight and guarantees a true IP65 degree of protection, suitable for outdoor applications
- The userinterface on the front panel provides LEDs for DC, AC and communication side status indication; there is also an LCD display divided into several sections that displays: date, time, any alarms, connection type, operation diagram, MPPT1 and MPPT2 voltage/current, E day, E Total, power and all instantaneous grid parameters.
- In addition, the inverters interface via built-in Wi-Fi to the RS Connect smartphone app that allows the user to manage configuration and self-test. Also via Wi-Fi or Ethernet card (optional), the inverters can be connected to the Internet for data management on RS Monitoring supervision portal, where it will be possible to have detailed remote string monitoring and view the performance of one's installation
- Finally via BUS 485 interface (integrated) it will be possible to connect multiple inverters to a dedicated datalogger which will manage via Ethernet the connection to the portal of the whole installation, with the possibility of connecting energy meters and environmental sensors.
EFFICIENCY:
- Maximum efficiency 98.00%
- European efficiency 97.50%
INPUT:
- Maximum input voltage 1000 V
- Rated input voltage 620 V
- Maximum input current 39 A (13 A + 26 A)
- Maximum short-circuit current 45A (15 A + 30 A)
- Starting voltage minimum operating voltage 200 V / 160 V
- MPPT operating voltage range 160 V÷950 V
- Operating voltage range (full load) MPPT 470 V÷800 V
- Maximum number of PV strings 3(1/2)
- Number of MPPTs 2
OUTPUT:
- AC active power (nominal) 15000 W
- Maximum apparent power AC 16500 VA
- Max active power. AC (PF=1) 16500 W
- Max. ac output current 3 x 22.7 A
- Rated AC voltage AC 380 V/400 V, 3F+N+PE
- AC voltage range 277 V÷520 V (adjustable)
- Rated mains frequency 50 Hz / 60 Hz
- Mains frequency range 45 Hz 55 Hz / 55 Hz 65 Hz
- Harmonics distortion (THDI) < 3% (rated power)
- DC current injection < 0.5% In
- Power factor > 0.99 rated power
PROTECTIONS:
- DC disconnect Si
- Anti-island protection Yes
- AC overcurrent protection Yes
- Short-circuit protection Yes
- DC pole reversal control Yes
- Surge voltage protector (VDR) DC and AC type II
- Earth leakage detection Yes
- Leakage current protection Yes
GENERAL:
- Transformerless type
- IP65 degree of protection
- Self-consumption at night < 1 W
- Natural Cooling
- Operating temperature range -25 °C/+60 °C
- Relative humidity range 0 ÷ 100%
- Maximum operating altitude 4000 m (> 2000 m derating)
- Noise level <30 dB (measured at 1m)
- Dimensions (WxDxH) 422 x 187 x 520 mm
- Weight 23.5 kg
COMMUNICATION:
- LED status display and LCD for data
- Built-in Wi-Fi communication, built-in RS485, Ethernet (optional)
- APP monitoring, Supervision Portal
CERTIFICATIONS:
- Safety IEC62109-I, IEC62109-2 EMC EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
- Standards IEC 0-21, IEC 0-16, RD1699
- Warranty 5 years (10 years optional)
There are no reviews
Data sheet
- Type:
- Inverter
- Power:
- 11 to 15KW
- WIFI:
- Integrated
- MPPT:
- 2
- Connection:
- Three-phase
