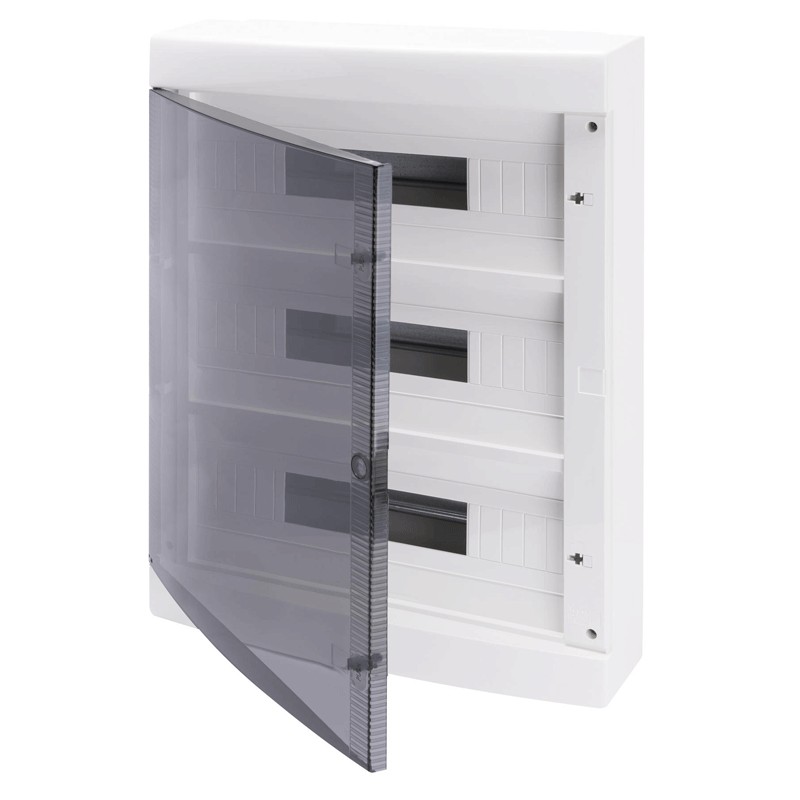

Switchboard Gewiss 52 modules (18X3) smoked glass IP40 GW40051
GEW GW40051
8011564033375
Gewiss furniture switchboard, with the following features:
- 52 modules (on three rows)
- IP40 degree of protection
Switchboard Gewiss 52 modules (18X3) smoked glass IP40 GW40051
€144.94
Tax included
€144.94
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 48
: 1
Pay in installments with Klarna
Features:
- Gewiss Series
- Isolation voltage 750V
- Rated voltage 400V
- Rated current 125A
- Power dissipation 63W
- Glow wire resistance 650 °C
- 52 modules (on three rows)
- Degree of protection IP40
- Switchboard with smooth walls
- Switchboard colour white RAL 9016
- Colour of door smoked glass
- Prepared for terminal block housing
- Insulation class II (according to IEC 61140)
- Type Material Halogen free according to EN 60754-2
- Impact resistance IK08
- External dimensions BxHxD 400x550x130 mm
- Thermopressure with ball 70 °C
- Operating temperature -25 +60 °C
There are no reviews
Data sheet
- Type: Wall
- Modules: 52
- Degree of protection: IP40
- Model: With door
