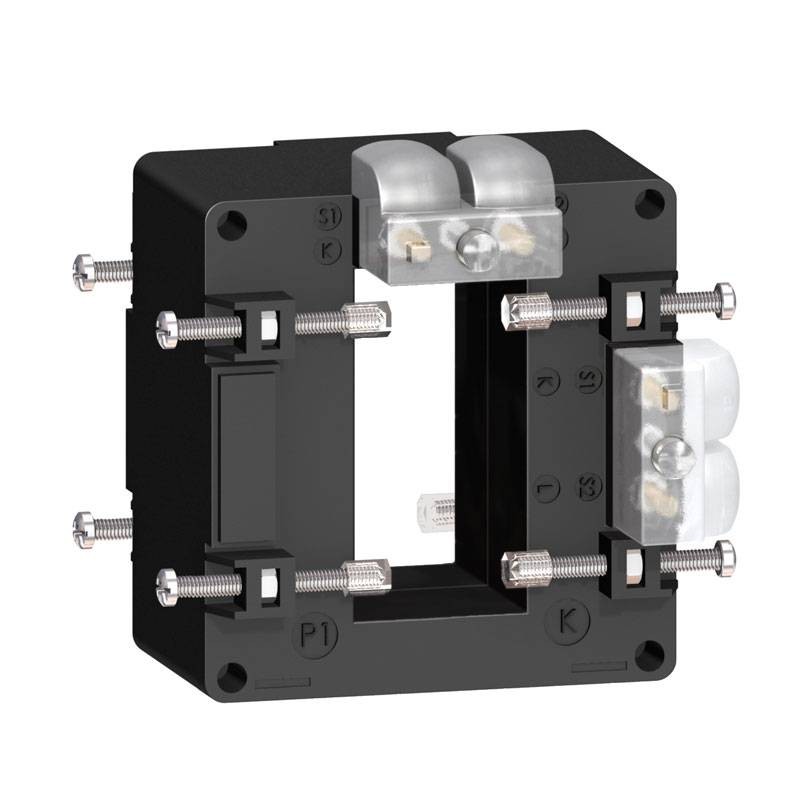

Schneider 400/5A Amperometric Transformer for Busbar 32x65mm METSECT5DA040
SNR METSECT5DA040
3303430164791
Schneider tropicalized Amperometric Transformer for 32x65mm bus bars with the following characteristics:
- Secondary current: 5A
- Rated current In: 400 A
- Conventional thermal current in air Ith: 24 kA
- Dynamic resistance current: 2.5 Ith
- Rated operating voltage Ue: 720 V "AC" "50/60 Hz"
- Rated insulation voltage Ui: 3 kV
- Rated impulse withstand voltage Uimp: 3 kV
Schneider 400/5A Amperometric Transformer for Busbar 32x65mm METSECT5DA040
€54.15
Tax included
€54.15
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
The tropicalized busbarcurrent transformer has a rated line current of 400 A and a rated secondary current of 5 A.
This current transformer has an opening of 65 mm x 32 mm. Compatible with a single busbar outlet: 65 mm x 32 mm.
Load and accuracy class: for class 0.5 maximum power 4 VA, for class 1 maximum power 8 VA.
Features:
- Accuracy class: Class 0.5 to 4 VA - Class 1 to 8 VA
- Mounting mode: insulated locking screw
- Mounting bracket: Collector bar
- Insulation class: B
- Relative humidity: 0/95 %
- Operating ambient temperature: -25/60 °C
- Degree of protection: IP20
- Bar opening: 65x32 mm
Dimensions and weight:
- Height: Outer 94 mm - Inner 32 mm
- Width: Outer 90 mm - Inner 65 mm
- Depth: Frame 40 mm - Total 87 mm
- Weight: 531 grams
There are no reviews
Data sheet
- Type:
- Toroidal Transformers
- Amps:
- 400A
