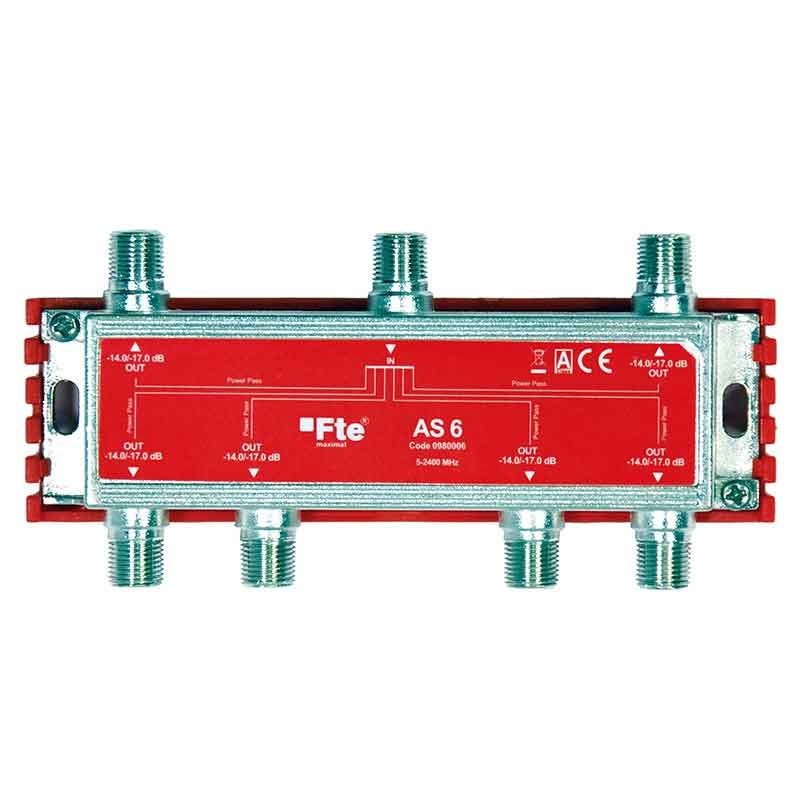

Divider TV FTE-class terrestrial and satellite 6 outputs 12 dB
FTE AS6
8436018440439
Divider TV FTE-class terrestrial and satellite 6 outputs 12 dB
Divider TV FTE-class terrestrial and satellite 6 outputs 12 dB
€12.15
Tax included
€12.15
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 31
Pay in installments with Klarna
Dividers armored inductive in-class terrestrial and satellite 5 to 2400 MHz, to six outputs with attenuation typical 12 dB
Strengths
Thanks to their reduced dimensions allow laying in boxes of small size, are high shielding conforming to standard EN 50083-2, with F connections high quality
Technical Data
| Frequency (MHz) | 5 - 2.400 |
| Band-return (MHz) | 5 - 65 |
| Outputs | 6 |
| Maximum attenuation (dB) | TV 13,0 SAT 15,5 |
| Attenuation step dB | > 1 |
| Shading factor (dB) | > 100 |
| The passage of current | IN - OUT |
| Type connectors | F |
| Dimensions (mm) | 122 x 60 x 27 |
There are no reviews
Data sheet
- Type: Splitters
- Version: 6 outputs
