Fracarro 8-way splitter PA8 280705
FRA 280705
8016978034833

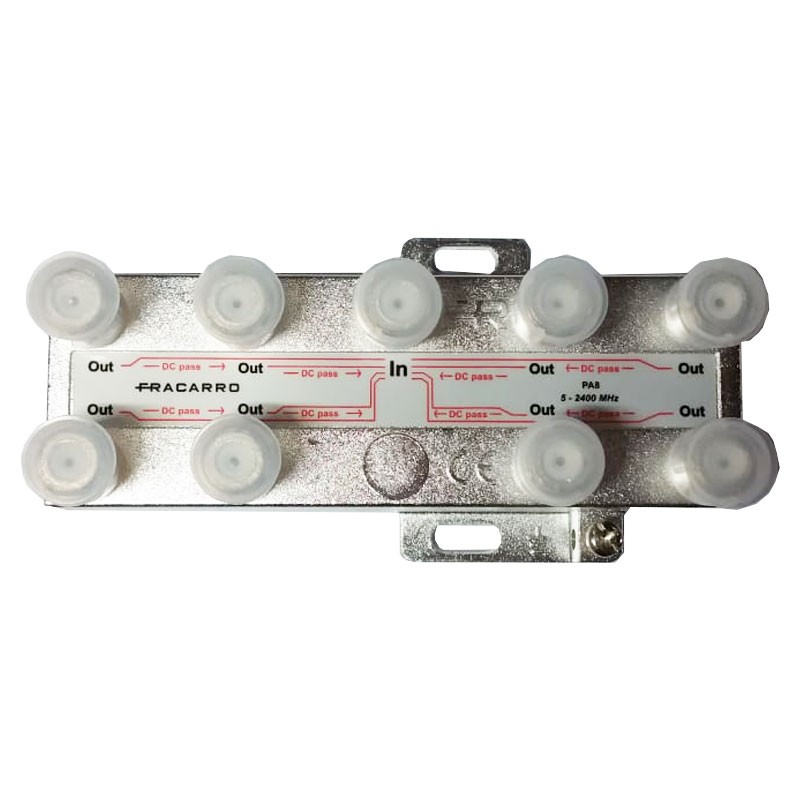

Fracarro PA8 vertical splitter, 8-way with F connector in TV and Satellite band (5-2400MHz).
Fracarro 8-way splitter PA8 280705
€13.63
Tax included
€13.63
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 361
: 90
Pay in installments with Klarna
Advantages:
- Elegant and compact design allows installation in any junction box
- Die-cast and nickel-plated, ensures high performance, with very low insertion loss, high return loss and insulation
- Prepared for grounding and wall mounting
- DC passage is allowed between the outputs and the input
Passage loss (dB)
- RC 5-40 MHz dB 12
- TV 47-862 MHz dB 12,5
- SAT 950-1750 MHz: dB 15,5
- SAT 1750-2150 MHz: dB 16,5
- SAT 2150-2400 MHz: dB 17
Output isolation (dB)
- RC 5-40 MHz: dB 20
- TV 47-862 MHz: dB 20
- SAT 950-1750 MHz: dB 20
- SAT 1750-2150 MHz: dB 20
- SAT 2150-2400 MHz: dB 20
Data sheet
- Type: Splitters
- Version: 8 outputs
