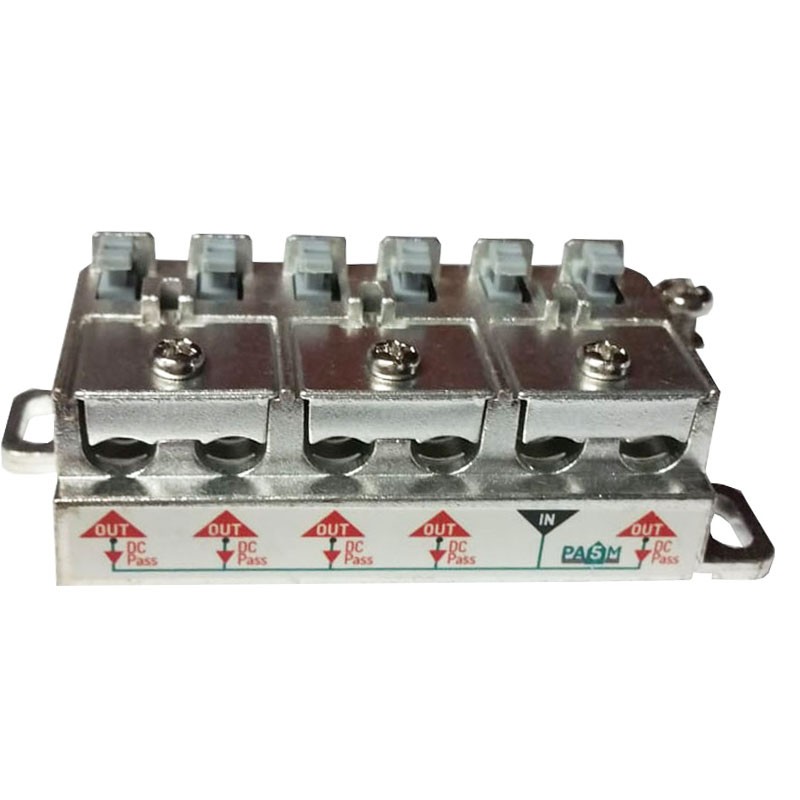

Fracarro PA5M 5-way divider with spring clamp 287459
FRA 287459
8016978101214
Fracarro PA5M splitter with spring clamp, 5-way (outputs) in TV band and satellite (5-2400MHz) . Dimensions: 82x33x23.
Fracarro PA5M 5-way divider with spring clamp 287459
€9.96
Tax included
€9.96
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 117
: 17
Pay in installments with Klarna
Passage loss (dB)
- RC 5-40 MHz dB: 10,6
- TV 47-862 MHz dB: 11,2
- SAT 950-1750 MHz dB: 12,7
- SAT 1750-2150 MHz: dB 13,5
- SAT 2150-2400 MHz :dB 16,5
Output isolation (dB)
- RC 5-40 MHz: dB 21
- TV 47-862 MHz: dB 21
- SAT 950-1750 MHz dB :21
- SAT 1750-2150 MHz: dB 21
- SAT 2150-2400 MHz: dB 20
Advantages:
- Thanks to theexclusive sealing clip, the central connector remains integral with the rest of the mechanics, facilitating the fixing of the cable.
- The very small dimensions and the clamp solution, without F connector, considerably reduce the installation space.
- The excellent shielding guarantees the protection of the signal from LTE disturbances present in the air.
- The new mechanism with protection fins (Rev. 1) avoids that the spring of the central connector can be accidentally pressed while closing the junction boxes.
Non l'ho ancora utilizzato ma è ciò che avevo richiesto. È stato descritto correttamente dal venditore.
non so esprimere un giudizio perchè non ancora installato
consigliato.
Data sheet
- Type: Splitters
- Version: 5 outputs
