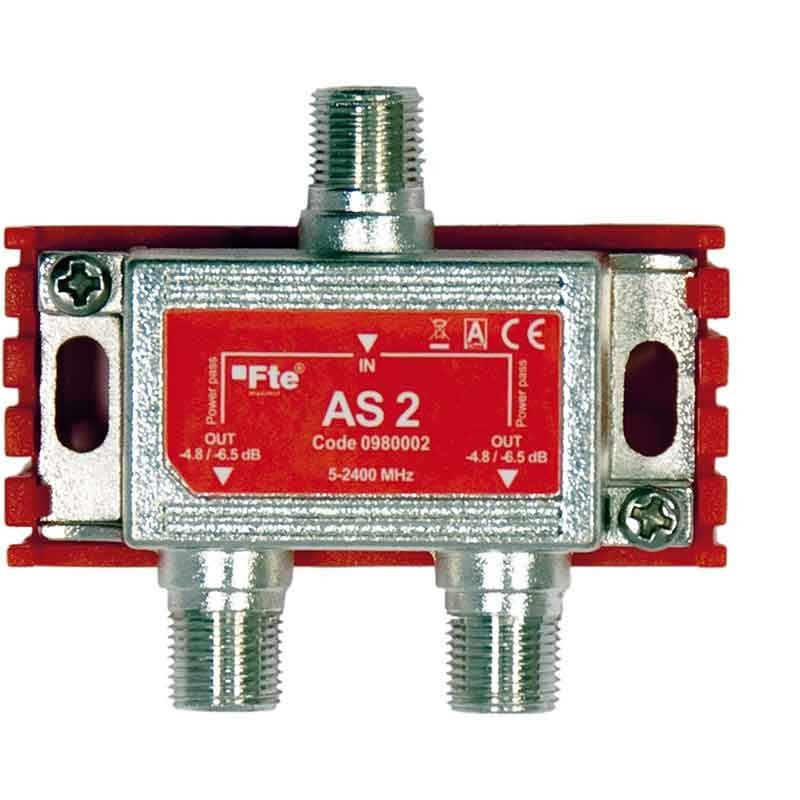

Divider TV FTE-class terrestrial and satellite channels, 2 outputs, 4 dB
FTE AS2
8436018440408
Divider TV FTE-class terrestrial and satellite channels, 2 outputs, 4 dB
Divider TV FTE-class terrestrial and satellite channels, 2 outputs, 4 dB
€5.47
Tax included
€5.47
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 41
Pay in installments with Klarna
Dividers armored inductive in-class terrestrial and satellite 5 to 2400 MHz, to two outputs, with attenuation of a typical 4 dB
Strengths
Thanks to their reduced dimensions allow laying in boxes of small size, are high shielding conforming to standard EN 50083-2, with F connections high quality
Technical Data
| Frequency (MHz) | 5 - 2.400 |
| Band-return (MHz) | 5 - 65 |
| Outputs | 2 |
| Maximum attenuation (dB) | TV 3,6 SAT 4,0 |
| Attenuation step dB | > 4 |
| Shading factor (dB) | > 100 |
| The passage of current | IN - OUT |
| Type connectors | F |
| Dimensions (mm) | 57 x 50 x 27 |
Originale di ottima fattura prezzo conveniente,piccolo ed adatto a tutte le scatole di derivazione
si tutto bene come descritto . soddisfatto
Data sheet
- Type: Splitters
- Version: 2 outputs
