Fracarro 6-way PA6 splitter 280704
FRA 280704
8016978034826

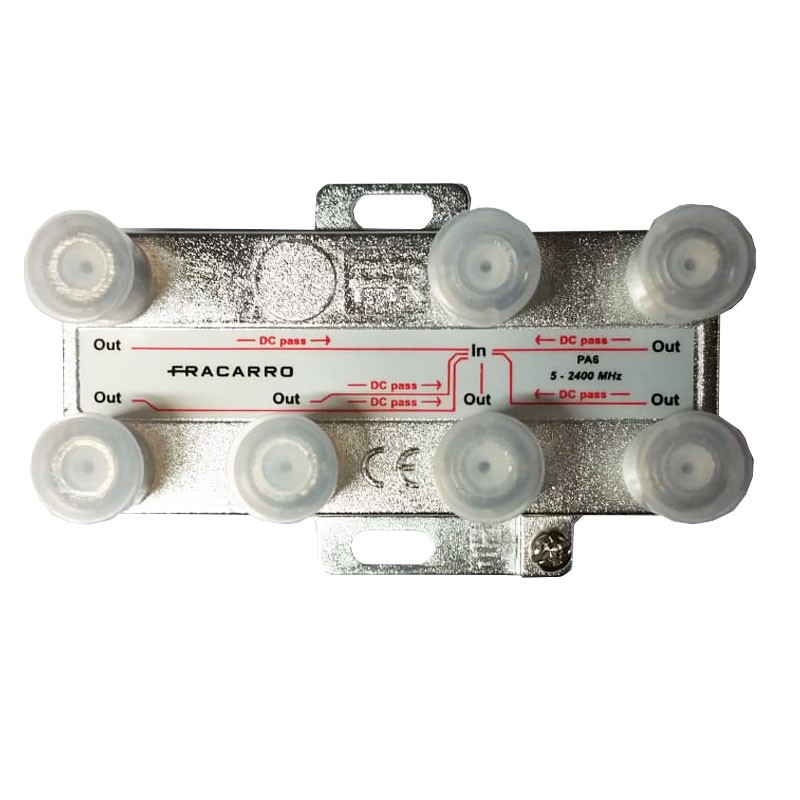

Fracarro PA6 vertical splitter, 6-way with F connector in TV and Satellite band (5-2400MHz).
Fracarro 6-way PA6 splitter 280704
€12.58
Tax included
€12.58
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1065
: 307
Pay in installments with Klarna
Advantages:
- Elegant and compact design allows installation in any junction box
- Die-cast and nickel-plated, ensures high performance, with very low insertion loss, high return loss and insulation
- Prepared for grounding and wall mounting
- DC passage is allowed between the outputs and the input
Passage loss (dB)
- RC 5-40 MHz dB 10,5
- TV 47-862 MHz dB 11
- SAT 950-1750 MHz: dB 13,5
- SAT 1750-2150 MHz: dB 14,5
- SAT 2150-2400 MHz: dB 16
Output isolation (dB)
- RC 5-40 MHz: dB 22
- TV 47-862 MHz: dB 22
- SAT 950-1750 MHz: dB 22
- SAT 1750-2150 MHz: dB 22
- SAT 2150-2400 MHz: dB 22
👌
...
ottimo prodotto tutto come da descrizione
Envoi et réception ultra rapide ! Produit Fracarro excellent
Je recommande
Ottimo prodotto, lo consiglio, ho risparmiato davvero molto rispetto al preventivo dell'elettricista!
Ottimo prodotto,e comprato al miglior prezzo trovato in rete
Data sheet
- Type: Splitters
- Version: 6 outputs
