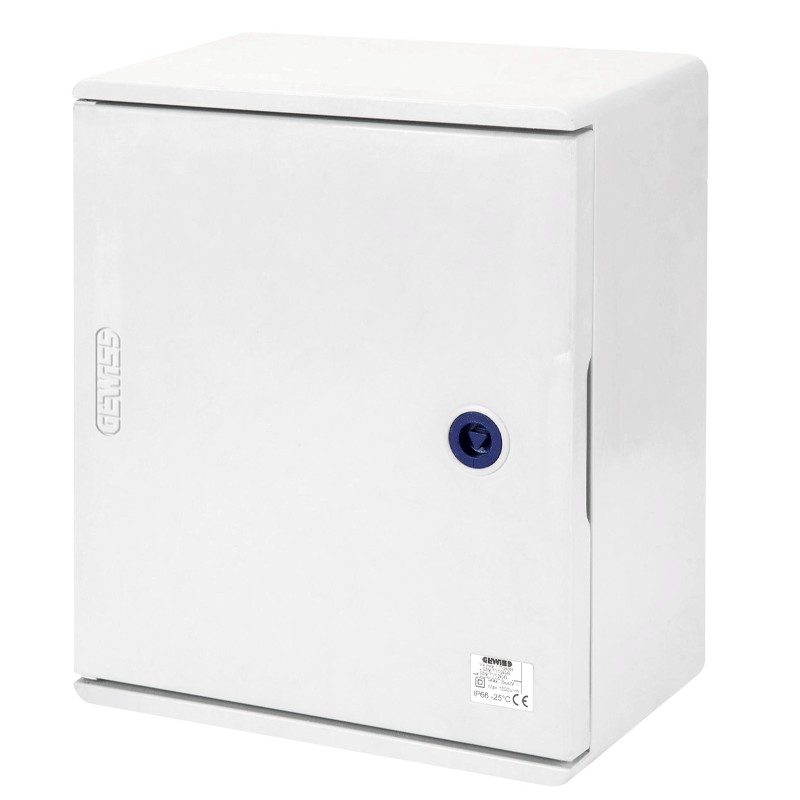

Gewiss wall-mounted control panel with solid door 250x300x160 IP66 GW46001F
GEW GW46001F
8011564854703
Gewiss wall-mounted electrical panel, with the following characteristics:
- Insulation voltage 1000 V
- Maximum rated voltage (Ue) 690 V
- Power dissipation A 34W
Double insulation recovery kit GW46526.
Wall fixing brackets GW46446, GW46451.
Compatible accessories: GW46401, GW46408.
Gewiss wall-mounted control panel with solid door 250x300x160 IP66 GW46001F
€108.37
Tax included
€108.37
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 67
: 3
Pay in installments with Klarna
Frequently bought together
Features:
- Blind door with lock

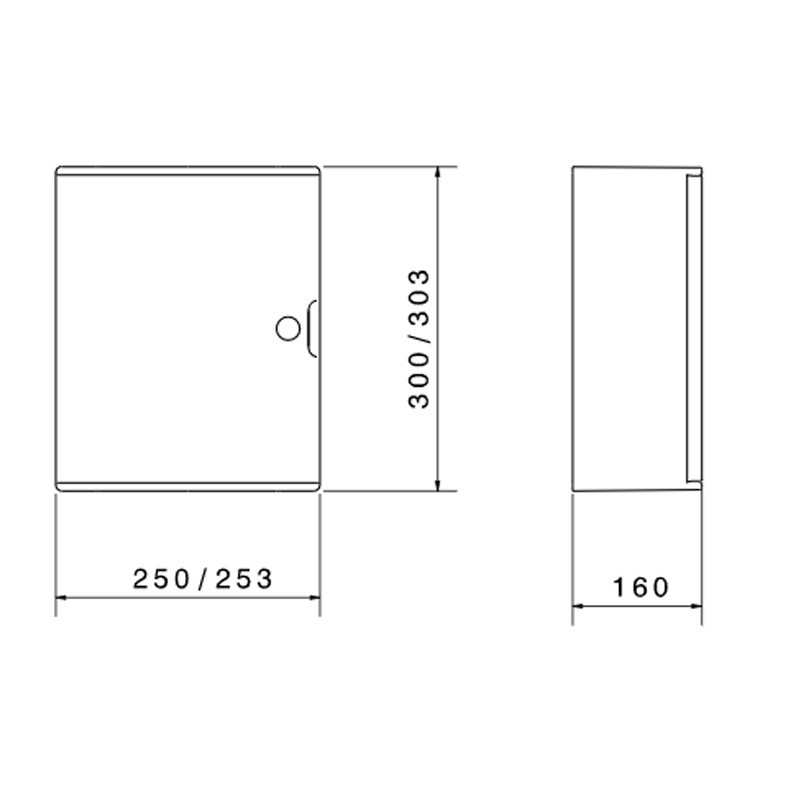

- Nominal/functional dimensions BxHxP: 250x300x160 mm
- IP66 degree of protection
- Shock resistance: IK10
- Insulation class II
- UV resistance (EN 62208)
- Material glass fibre reinforced polyester
- Type Material Halogen free according to EN 60754-2 standard
- Standard: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
- Colour: grey RAL 7035
- Glow wire resistance 960 °C
- Electrocod Code 0321
- Family 46 QP
- Number of locks: 1
- Operating temperature -25 +60 °C
- Thermopressure with ball 200 °C
Data sheet
- Type: Panels
- Degree of protection: IP66
- Model: Blind Door
