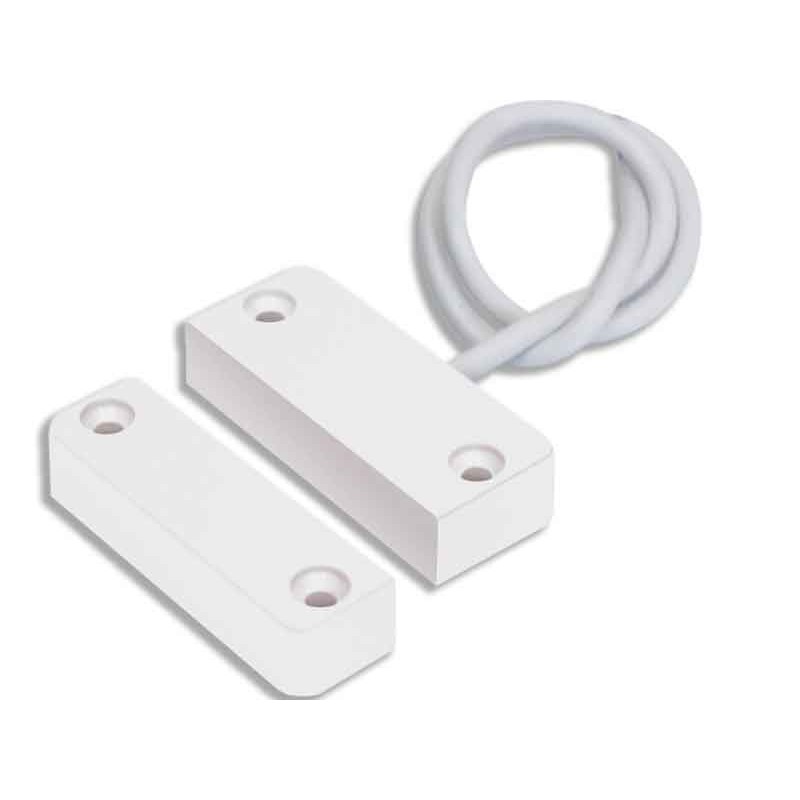

Hiltron magnetic contact for doors and windows XM series XM58
C1A XM58
8056450410236
Hiltron external magnetic contact for XM series, with the following features:
- Connection on bus line: 2 wires
- Installation: on doors and windows
- Maximum current consumption: 1mA (on MPX)
- Sensitivity levels: 8 (from 50mS to 225mS with step of 25mS)
- Cable length 25 cm
- Operating distance 18 mm
- Container Nylon
- Color white
- Safety grade 1 - Environmental class 2
- Dimensions: W16mm - H9mm - D40mm
Hiltron magnetic contact for doors and windows XM series XM58
€22.43
Tax included
€22.43
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 47
: 5
Pay in installments with Klarna
| Technical Features : | |
| Connection on MPX bus line | 2-wire |
| Color | white |
| Installation | on the doors and windows |
| The maximum absorption | 1mA (on MPX) |
| Levels sensitivity | 8 (from 50mS to 225mS with a step of 25mS) |
| Cable length ± 10mm | 25cm |
| Operating distance max on wood or plastic | 18mm |
| The outer container | Nylon |
| Operating temperature | +5°C ÷ 40°C |
| Size (L) | 16mm |
| Size (A) | 9mm |
| Size (P) | 40mm |
There are no reviews
Data sheet
- Type: Contacts
- System: With Wires
- Installation: Doors and Windows
