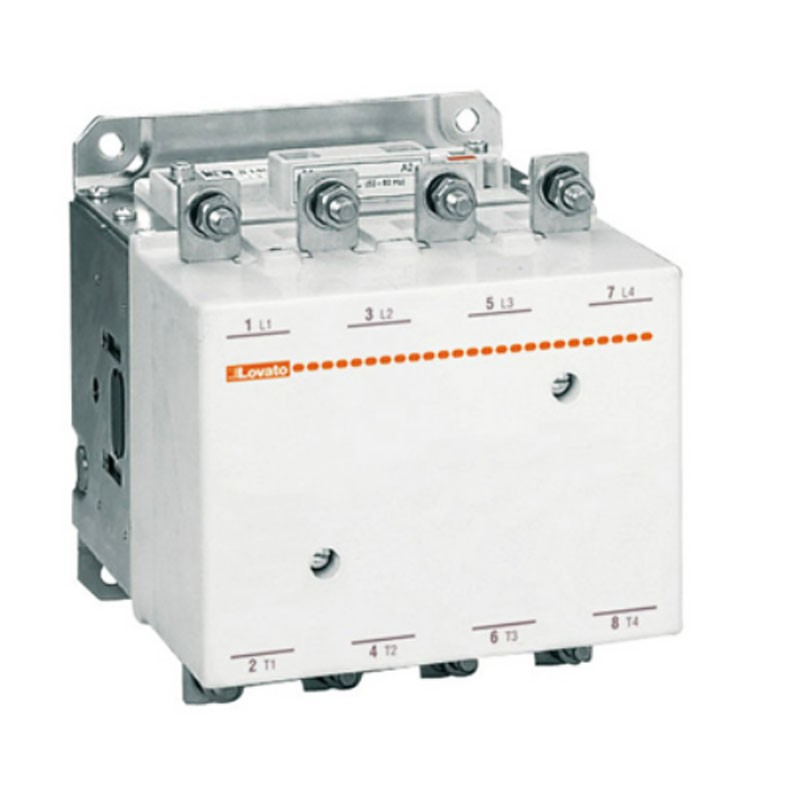

Lovato four-pole contactor 350A coil 220-240Vac-dc 11B250400220
LOV 11B250400220
8013975026465
Lovato four-pole power contactor with the following characteristics:
- IEC/EN rated insulation voltage Ui: 1000V
- Rated impulse withstand voltage Uimp: kV 8
- Number of poles: 4
- Operating frequency: min 25 - max 400 Hz
- IEC Conventional free air thermal current Ith: UN 350
- Operating current: UN 265A
- Operating AC coil: Rated AC voltage at 50/60Hz, 60Hz: 220/240V
- Operating DC coil: Rated DC control voltage: 220/240V
- Coil holding dissipation =20°C 50 Hz: 10W
- Allowable short-time current for 10 s (IEC/EN60947-1): UN 2200
Lovato four-pole contactor 350A coil 220-240Vac-dc 11B250400220
€975.53
Tax included
€975.53
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Other technical features:
- Lovato series
- Protective fuse: gG (IEC) UN 400 - aM (IEC) UN 250
- Production capacity (rms value): UN 2750
- Resistance per pole (average value): m 0.2
- Maximum number of wires that can be connected simultaneously: 2
- Protection of power terminals according to IEC/EN 60529: IP00
- Conductor cross section: AWG/Kcmil max 500 kcm
- Operating position: normal vertical plane, Allowable ±30°
- Fixing: screw
- Mechanical life: cycles 10000000
- Electrical life: cycles 1000000
- Mirror contact according to IEC/EN 609474-4-1: yes
- EMC compatibility: yes
- Maximum frequency of cycles: mechanical operation: cycles/h 2400
- Maximum altitude: m 3000
- Pollution degree: 3
- Operating temperature: -50/+70°C
- Storage temperature: -60/+80°C
- Weight: 1.12kg
There are no reviews
Data sheet
- Type: Contactors
