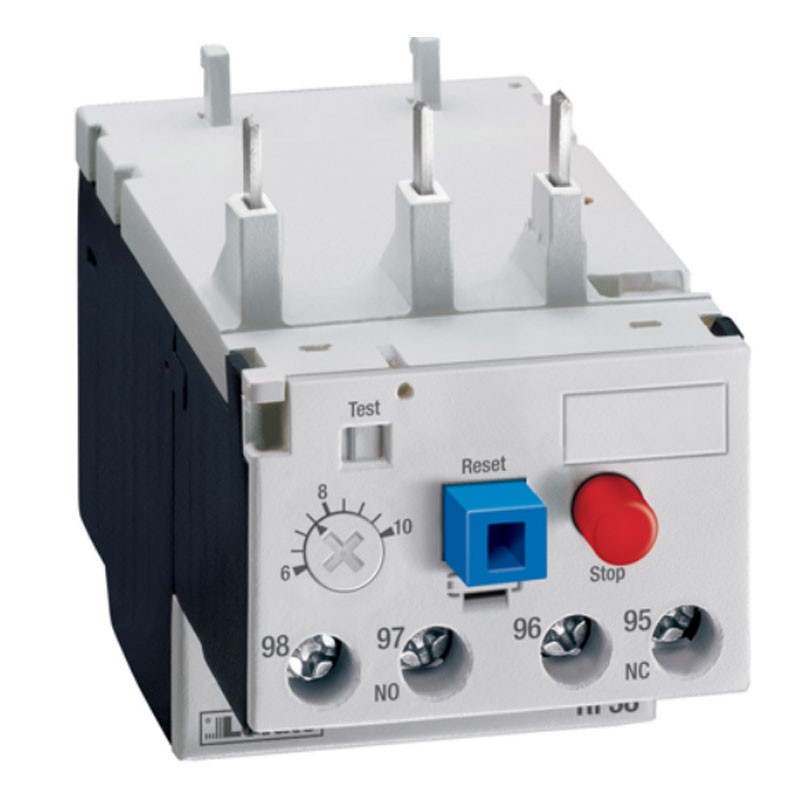

Lovato thermal relay mounting contactor BF09-38 24 to 32A RF383200
LOV RF383200
8013975169858
Lovato thermal motor protection relay, with the following characteristics:
- Rated insulation voltage Ui IEC/EN IN 690
- Rated impulse withstand voltage Uimp: kV 6
- Rated operating voltage: IN 690
- Conductor cross section: AWG/kcmil max 8
- With: test button and trip indicator
- Auxiliary contacts: 1NO and 1NC
- Operating frequency: min Hz 0 - max Hz 400
- Operating current Es: min operating current UN 24, max operating current UN 32
- Trip class 10A
Lovato thermal relay mounting contactor BF09-38 24 to 32A RF383200
€70.26
Tax included
€70.26
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 11
: 4
Pay in installments with Klarna
Other features:
- Operating temperature: min °C -25/ max °C +60
- Storage temperature: min °C -50/ max °C +70
- Compensation temperature: min °C -20/ max °C +60
- Maximum altitude: 3000 m
- Operating position: normal Vertical plane - allowable ±30°
- Weight: 160 grams
- Number of poles: 3
- Overvoltage category: III
- Pollution degree: 3
- Front IP rating: IP20
- Release type: thermal
- Phase failure detection: yes
- Recovery mode: manual or automatic
There are no reviews
Data sheet
- Type: Relays
- Poles: 3P
- Degree of protection: IP20
