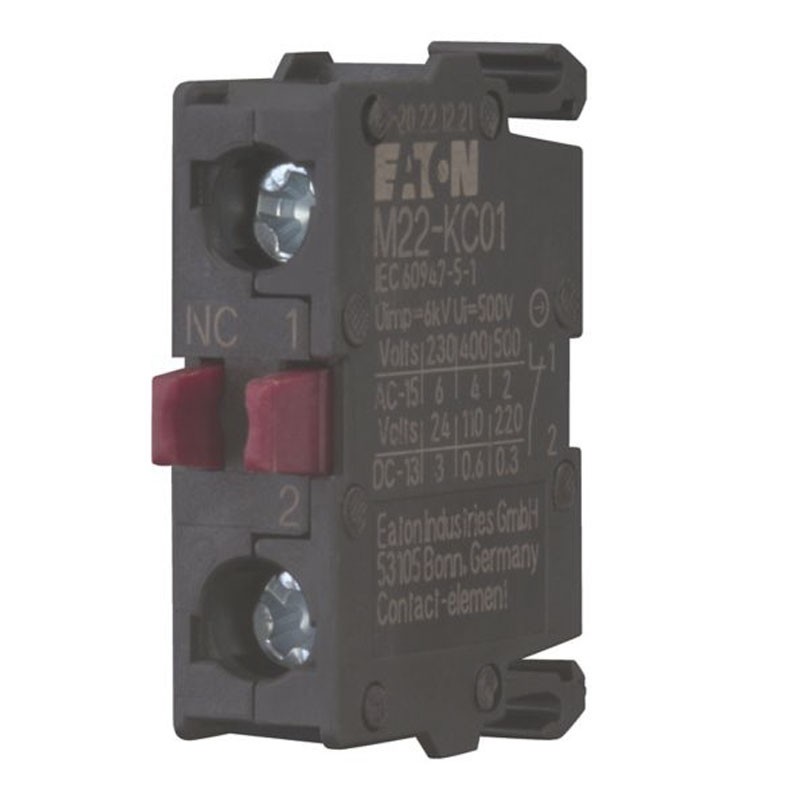

Eaton M22-KC01 NC Auxiliary Contact Screw Base Mounting 216382
EAO 216382
4015082163822
Eaton M22-KC01 auxiliary contact, with the following characteristics:
- Connection types: Screw terminals
- Type of mounting: Fixing in enclosure or on telescope clip
- Degree of protection: IP20
- NC = Norm. Closed: 1 NC contact
- Compliance with standards: IEC 60947-5-1
- Mechanical endurance [maneuvers]: >5 x 106
- Maneuvering frequency [man/h]: ≦ 3600
- Actuating force: ≦ 5 NET
- Ambient temperature during daytime: -25/+70 °C
- Shock resistance according to IEC 60068-2-27
- Mounting type: floor mounting
- Without lamp holder
Eaton M22-KC01 NC Auxiliary Contact Screw Base Mounting 216382
€4.23
Tax included
€4.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 38
: 28
Pay in installments with Klarna
Other technical features:
- Shock duration 11 ms, half-wave > 30 g
- Rated impulse withstand voltage [Uimp]: 6000V AC
- Rated insulation voltage [Ui]: 500V
- Overvoltage category/pollution degree: III/3
- Max. short-circuit protection device: Fuse [gG/gL]: 10A
- Rated operational current [Ie] AC-15 115 V [Ie]: 6A
- Short-circuit current [Iq]: 1 Ka
- Rated use current for dissipation data [In]: 6A
There are no reviews
Data sheet
- Type: Auxiliary Contacts
