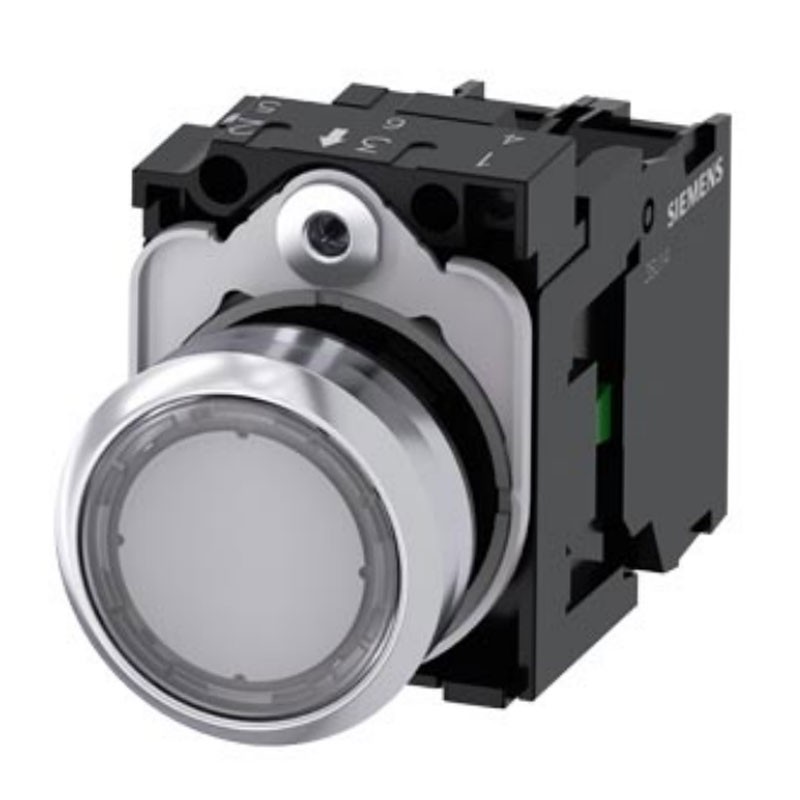

Siemens luminous transparent pushbutton 22mm LED 24V 3SU11520AB701BA0
SIE 3SU11520AB701BA0
4011209958906
Siemens flat light button, with the following characteristics:
- Supply voltage of the light source with AC: 24V
- Rated pollution degree: 3
- Isolation voltage: 320V
- Voltage type: AC/DC
- Maximum inrush current of LED module: 2 amps
- Metal, polished, 22mm
- Number of LED modules: 1
- Light source color: clear/transparent
- Temperature during operation: -25/+70°C
- Temperature during storage: -40/+80°C
- Button shape/material: round/plastic
- Degree of protection: IP66, IP67, IP69 (IP69K), IP20
- NEMA shock resistance: 1, 2, 3, 3R, 4, 4X, 12, 13
- Mounting method: face plate mounting
Siemens luminous transparent pushbutton 22mm LED 24V 3SU11520AB701BA0
€16.17
Tax included
€16.17
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna

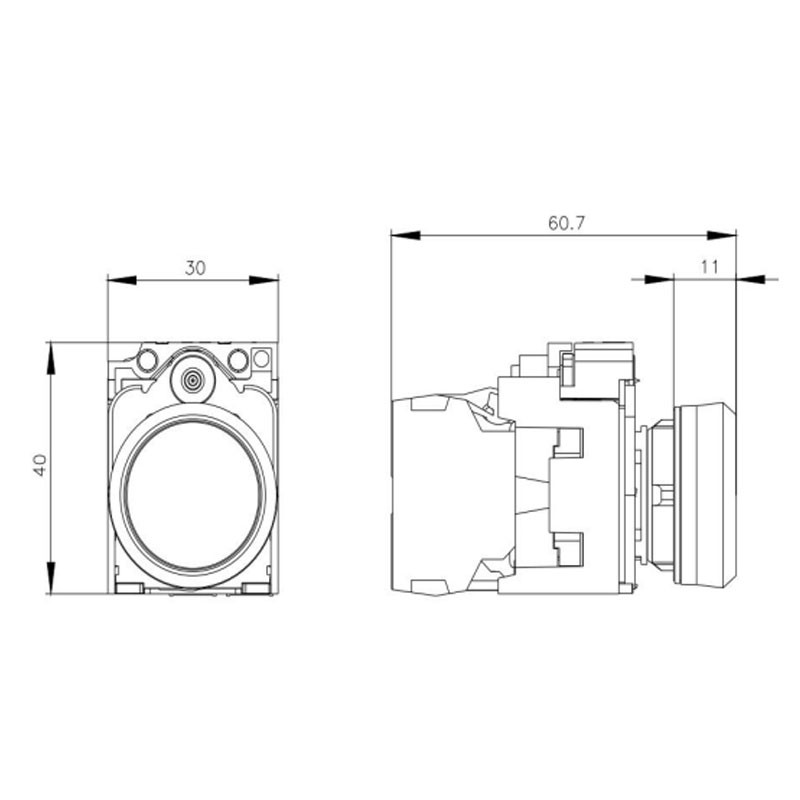

Dimensions:
- Height 40 mm
- Width 30 mm
- Installation opening shape: round
- Installation diameter 22.3 mm
- Positive tolerance of installation diameter 0.4 mm
- Installation height 11 mm
- Installation width 29.5 mm
There are no reviews
Data sheet
- Type: Buttons
