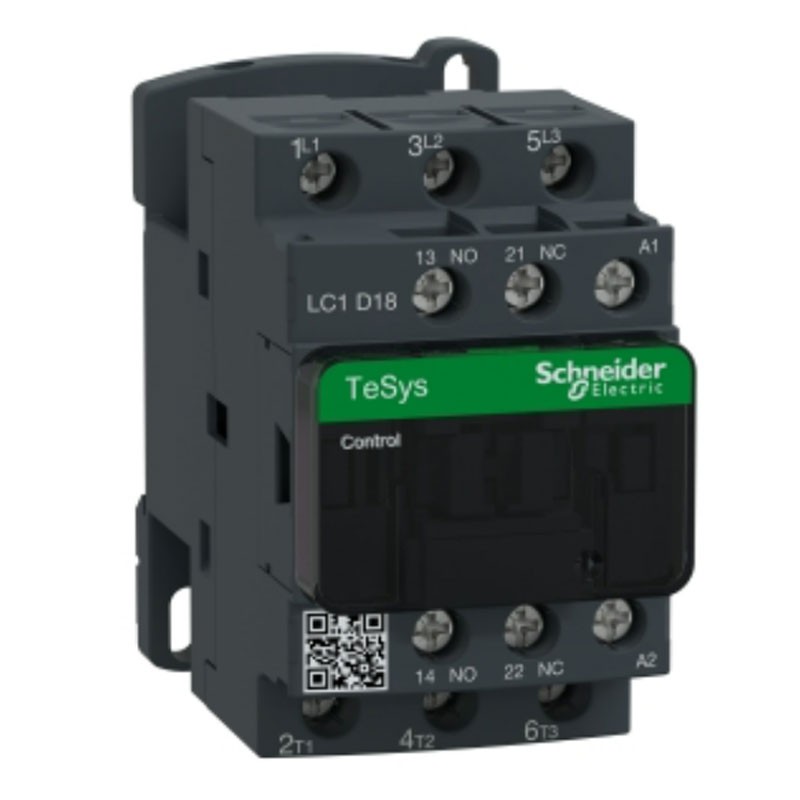

LC1D18F7 is a 3-pole TeSys D contactor from Schneider Electric for motor applications up to 7.5 kW at 400V.

It includes a 110V 50/60 Hz AC coil and integrated 1NO+1NC auxiliary contacts and can be used in safety applications due to its certified NC mirror contact. Compact, DIN-rail-mounted, it ensures high reliability and durability. Available worldwide, it is certified to various standards (IEC, UL, CSA, CCC, EAC, for use in marine environments) and is Green Premium (RoHS/REACH) compliant.

Advantages:

• Compact product, 45 mm wide, for DIN rail and panel mounting
• Separation between power and control circuits, easy front access to coil and auxiliary contact connections
• Equipped with a 110V AC coil that can be powered at 50 Hz or 60 Hz
• Features 2 built-in 1NA+1NC auxiliary contacts
• High electrical durability, guaranteed for 1.6 million cycles at 18 A AC-3 440 V
• Environmentally friendly product performance




Rated use current:

• 18 A 60 °C) "AC" AC-3 for Power Circuit at <= 440 V
• 32 A 60 °C) "AC" AC-1 for Power circuit at <= 440 V
• 18 A 60 °C) "AC" AC-3e for Power circuit at <= 440 V



Motor power KW:

• 4 kW at 220...230 V AC 50/60 Hz (AC-3)
• 7.5 kW at 380...400 V AC 50/60 Hz (AC-3)
• 9 kW at 415...440 V AC 50/60 Hz (AC-3)
• 10 kW at 500 V AC 50/60 Hz (AC-3)
• 10 kW at 660...690 V AC 50/60 Hz (AC-3)
• 4 kW at 400 V AC 50/60 Hz (AC-4)
• 4 kW at 220...230 V AC 50/60 Hz (AC-3e)
• 7.5 kW at 380...400 V AC 50/60 Hz (AC-3e)
• 9 kW at 415...440 V AC 50/60 Hz (AC-3e)
• 10 kW at 500 V AC 50/60 Hz (AC-3e)
• 10 kW at 660...690 V AC 50/60 Hz (AC-3e)



Motor power in hp:

• 1 hp at 115 V for 1 phase AC 50/60 Hz motors.
• 3 hp at 230/240 V for 1 phase AC motors 50/60 Hz
• 5 hp at 200/208 V for 3 phase AC motors 50/60 Hz
• 5 hp at 230/240 V for 3 phase AC motors 50/60 Hz
• 10 hp at 460/480 V for 3 phase AC motors 50/60 Hz
• 15 hp at 575/600 V for 3 phase AC motors 50/60 Hz



Rated closing power Irms:

• 140 A "AC" for signaling circuit complying with IEC 60947-5-1
• 250 A DC for signaling circuit complying with IEC 60947-5-1
• 300 A at 440 V for power circuit complying with IEC 60947



Rated allowable short-time withstand (ICW) current:

• 145 A at <40 °C - 10 s for Power Circuit
• 240 A at <40 °C - 1 s for Power Circuit
• 40 A at <40 °C - 10 min per Power Circuit
• 84 A at <40 °C - 1 min per Power circuit
• 100 A - 1 s per signaling circuit
• 120 A - 500 ms per signaling circuit
• 140 A - 100 ms per signaling circuit



Associated fuse gauge:

• 10 A gG for signaling circuit complying with IEC 60947-5-1
• 50 A gG at <= 690 V coordination Type 1 for Power circuit
• 35 A gG at <= 690 V coordination Type 2 for Power circuit



Rated insulation voltage:

• 690 V complying with IEC 60947-4-1 Power Circuit
• 600 V CSA certified Power circuit
• 600 V UL certified Power circuit
• 690 V complying with IEC 60947-1 signaling circuit
• 600 V CSA certified signaling circuit
• 600 V UL certified signaling circuit



Mechanical robustness:

• Open contactor vibration (2 Gn, 5...300 Hz)
• Contactor vibration closed (4 Gn, 5...300 Hz)
• Contactor shocks open (10 Gn for 11 ms)
• Contactor shocks closed (15 Gn for 11 ms)





Connections / Terminals:

• Control circuit screw clamps: 1 1...4 mm² - cable stiffness: flexible without cable end
• Control circuit screw clamps: 2 1...4 mm² - cable stiffness: flexible without cable end
• Control circuit screw clamps: 1 1...4 mm² - cable stiffness: flexible with cable end
• Control circuit screw clamps: 2 1...2.5 mm² - cable stiffness: flexible with cable end
• Control circuit screw clamps: 1 1...4 mm² - cable stiffness: solid without cable end
• Control circuit screw clamps: 2 1...4 mm² - cable stiffness: solid without cable end
• Screw clamp terminals Power circuit: 1 1.5...6 mm² - cable stiffness: flexible without cable end
• Screw clamp terminals Power circuit: 2 1.5...6 mm² - cable stiffness: flexible without cable end
• Screw clamp terminals Power circuit: 1 1...6 mm² - cable stiffness: flexible with cable end
• Screw clamp terminals Power circuit: 2 1...4 mm² - cable stiffness: flexible with cable end
• Screw clamp terminals Power circuit: 1 1.5...6 mm² - cable stiffness: solid without cable end
• Screw clamp terminals Power circuit: 2 1.5...6 mm² - cable stiffness: solid without cable end



Tightening torque:

• Power circuit: 1.7 Nm - on screw clamps - with Ø 6 mm flat screwdriver
• Power circuit: 1.7 Nm - on screw clamping terminals - with Philips screwdriver No 2
• Control circuit: 1.7 Nm - on screw clamps - with Ø 6 mm flat screwdriver
• Control circuit: 1.7 Nm - on screw clamps - with Philips screwdriver No 2
• Control circuit: 1.7 Nm - on screw clamping terminals - with pozidriv screwdriver No 2
• Power circuit: 1.7 Nm - on screw clamps - with pozidriv screwdriver No 2



Other Features:

• Overvoltage category: Acti9 VigiARC iC40
• Pollution degree: 3
• Rated breaking capacity: 300 A at 440 V per IEC 60947-compliant power circuit
• Mechanical endurance: 15 Mcicycles
• Installation: Plate - Rail
• Safety Reliability Level: B10d = 1369863 cycles Contactor with rated load complies with EN/ISO 13849-1 - B10d = 20000000 cycles Contactor with mechanical load complies with EN/ISO 13849-1
• Control circuit voltage limits: 0.3...0.6 Uc -40...70 °C de-energizing AC 50/60 Hz, 0.8...1.1 Uc -40...60 °C operating AC 50 Hz, 0.85...1.1 Uc -40...60 °C operating AC 60 Hz, 1...1.1 Uc 60...70 °C operating AC 50/60 Hz
• VA inrush power: 70 VA 60 Hz 0.75 20 °C), 70 VA 50 Hz 0.75 20 °C)
• VA holding power consumption: 7.5 VA 60 Hz 0.3 20 °C) - 7 VA 50 Hz 0.3 20 °C)
• Operating time: 12...22 ms closing, 4...19 ms opening
• Maximum operating cycles: 3600 cycles/h at <60 °C
• Electrical life: 1.65 Mcicli 18 A AC-3 at Ue <= 440 V - 1 Mcicli 32 A AC-1 at Ue <= 440 V - 1.65 Mcicli 18 A AC-3e at Ue <= 440 V
• No-overlap time: 1.5 ms upon deactivation between NC and NO contact, 1.5 ms upon activation between NC and NO contact
• Auxiliary contact composition: 1 NO + 1 NC
• Auxiliary contact type: Mechanically linked type 1 NO + 1 NC complying with IEC 60947-5-1, mirror contact type 1 NC complying with IEC 60947-4-1
• Signaling circ. frequency: 25 to 400 Hz
• Protective treatment: TH in accordance with IEC 60068-2-30
• Climatic sealing: complies with IACS E10 moist heat exposure, complies with IEC 60947-1 Annex Q category D moist heat exposure
• Insulation resistance: > 10 MOhm per signaling circuit
• IP rating: IP20 Front side complies with IEC 60529
• Dimensions: height 77 mm - width 45 mm - depth 86 mm
• Allowable temperature near the device: -40/+60 °C, -60/+70 °C with derating
• Operating altitude: 0...3000 m
• Fire resistance: 850 °C complying with IEC 60695-2-1
• Fire resistance: V1 in accordance with UL 94
• Weight: 0.333 kg
