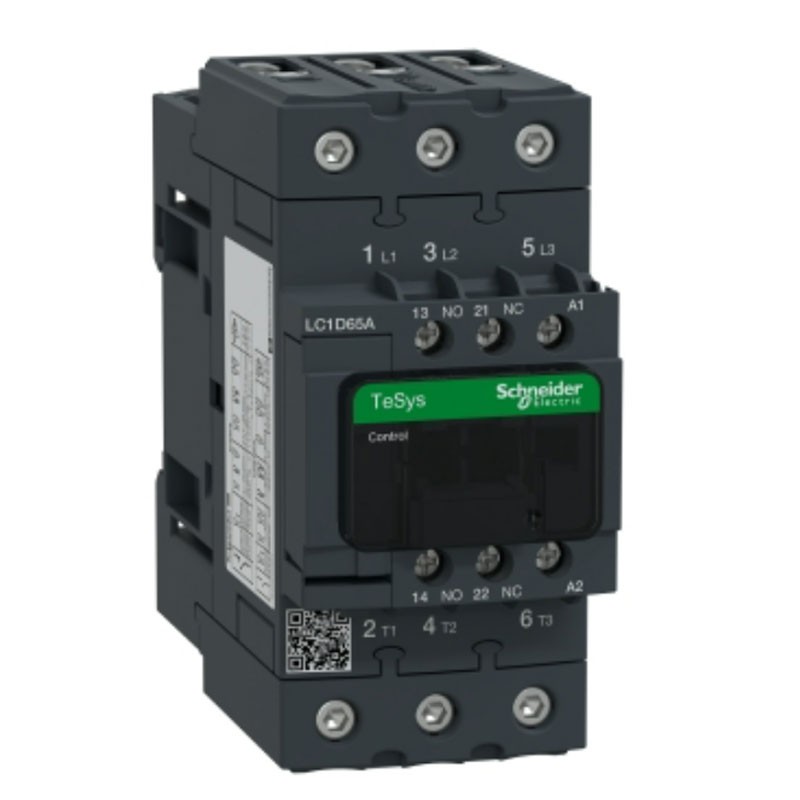

Telemecanique TeSys D 3P 65A 24VAC Contactor LC1D65AB7
SNR LC1D65AB7
3389119408936
Schneider TeSys D Telemecanique contactor, with the following characteristics:
- Rated operating voltage [Ue]: <= 690 V "AC" 25...400 Hz Power circuit, <= 300 V DC Power circuit
- Contactor application: Motor control - Resistive load
- Poles: 3
- Contact composition pole 3 NO
- Contact compatibility M2
- Protection coverage: With
- Conventional thermal current in open air [Ith]: 10 A at <60 °C for signaling circuit, 80 A at <60 °C for Power circuit
- Rated interrupting capacity: 1000 A at 440 V for Power circuit in accordance with IEC 60947
- Average Impedance: 1.5 mOhm "50 Hz" - Ith 80 A per Power Circuit
- Overvoltage category: Acti9 VigiARC iC40
- Pollution degree: 3
Telemecanique TeSys D 3P 65A 24VAC Contactor LC1D65AB7
€240.17
Tax included
€240.17
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 13
: 1
Pay in installments with Klarna
Frequently bought together
LC1D65AB7 is a 3-pole TeSys D contactor from Schneider Electric for motor applications up to 30 kW at 400 V. It includes a 24V 50/60 Hz AC coil and integrated 1NO+1NC auxiliary contacts and can be used in safety applications due to its certified NC mirror contact. Compact, DIN-rail-mounted, it ensures high reliability and durability. Available worldwide, it is certified to various standards (IEC, UL, CSA, CCC, EAC, for use in marine environments) and is Green Premium (RoHS/REACH) compliant.
Advantages:
- Compact product,55 mm wide, for DIN rail and panel mounting
- Separation between power and control circuits, easy front access to coil and auxiliary contact connections
- Equipped with a 24 V AC coil that can be powered at 50 Hz or 60 Hz
- Features 2 built-in 1NA+1NC auxiliary contacts
- High electrical durability, guaranteed for 1.6 million cycles at 65 A AC-3 440 V
- Environmentally friendly product performance
Other technical features:
- Rated impulse withstand voltage [Uimp]: 6 kV complying with IEC 60947
- Mechanical endurance: 6 Mccycles
- Maximum operating speed: 3600 cycles/h at <60 °C
- Auxiliary contact composition: 1 NO + 1 NC
- Auxiliary contact type: Mechanically linked type 1 NO + 1 NC complying with IEC 60947-5-1 mirror contact type 1 NC complying with IEC 60947-4-1
- Signaling circuit frequency: 25 to 400 Hz
- Minimum switching voltage: 17V per signaling circuit
- IP degree of protection: IP20 Front side complies with IEC 60529
- Protection treatment: TH in accordance with IEC 60068-2-30
- Minimum switching current: 5 mA per signaling circuit
- Insulation resistance: > 10 MOhm per signaling circuit
- No-overlap time: 1.5 ms upon deactivation between NC and NO contact, 1.5 ms upon activation between NC and NO contact
- Allowable temperature near the device: -40/+60 °C, -60/+70 °C with derating
- Operating altitude: 0 to 3000 m
- Fire resistance: 850 °C complying with IEC 60695-2-1
- Fire resistance: V1 in accordance with UL 94
- Dimensions: height 122 mm - width 55 mm - depth 120 mm
- Weight: 0.860 kg
There are no reviews
Data sheet
- Type: Contactors
