TeSys LC1D 12A 3P 220VAC Telemecanique Contactor LC1D12M7
SNR LC1D12M7
3389110349276
Schneider TeSys LC1D contactor with the following characteristics:
- Number of poles:3
- Rated operating voltage Ue:<= 690 V DC 25...400 Hz Power circuit - <= 300 VDC Power circuit
- Conventional thermal current in open air: 25 A at <60 °C for signaling circuit - 10 A at <60 °C for Power circuit
- Control circuit type: AC at "50/60 Hz" standards
- Auxiliary contact composition: 1 NO + 1 NC
- Minimum switching voltage: 17V for signaling circuit
- Minimum switching current: 5 mA per signaling circuit
TeSys LC1D 12A 3P 220VAC Telemecanique Contactor LC1D12M7
€42.01
Tax included
€42.01
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 36
: 2
Pay in installments with Klarna
Frequently bought together

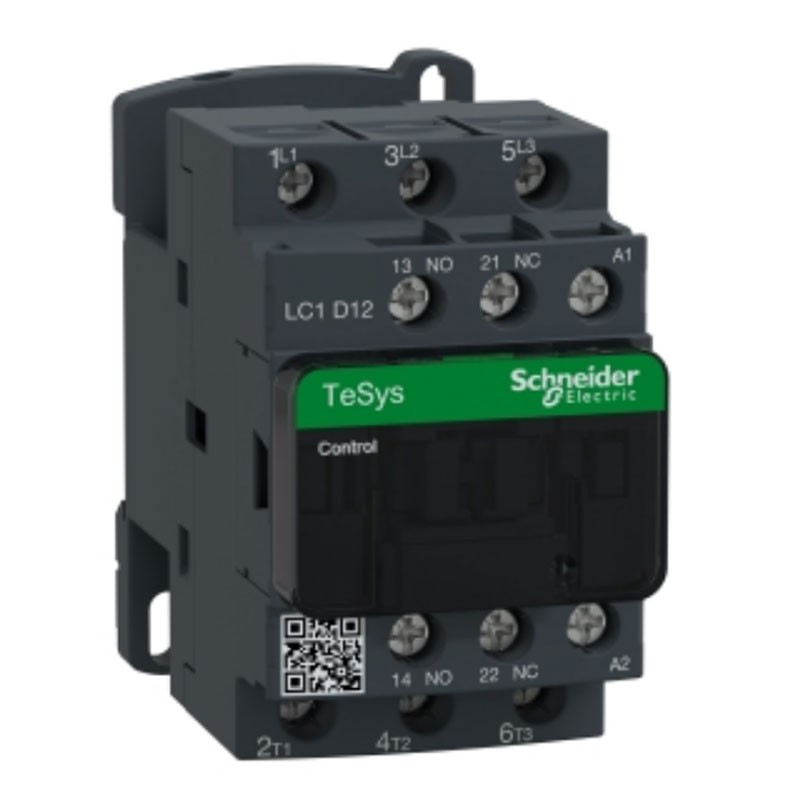

LC1D12M7 is a 3-pole TeSys D contactor from Schneider Electric for motor applications up to 5.5 kW at 400 V. It includes a 220V 50/60 Hz AC coil and integrated 1NO+1NC auxiliary contacts and can be used in safety applications due to its certified NC mirror contact. Compact, DIN-rail-mounted, it ensures high reliability and durability. Available worldwide, it is certified to various standards (IEC, UL, CSA, CCC, EAC, for use in marine environments) and is Green Premium (RoHS/REACH) compliant.
Rated use current:
- 25 A 60 °C) "AC" AC-1 for Power Circuit at <= 440 V
- 12 A 60 °C) "AC" AC-3 for Power circuit at <= 440 V
- 12 A 60 °C) AC-3e for Power circuit at <= 440 V
Motor power:
- 3 kW at 220...230 V "AC" "50/60 Hz" (AC-3)
- 5.5 kW at 380...400 V "AC" "50/60 Hz" (AC-3)
- 5.5 kW at 415...440 V "AC" "50/60 Hz" (AC-3)
- 7.5 kW at 500 V "AC" "50/60 Hz" (AC-3)
- 7.5 kW at 660...690 V "AC" "50/60 Hz" (AC-3)
- 3.7 kW at 400 V "AC" "50/60 Hz" (AC-4)
- 3 kW at 220...230 V "AC" "50/60 Hz" (AC-3e)
- 5.5 kW at 380...400 V "AC" "50/60 Hz" (AC-3e)
- 5.5 kW at 415...440 V "AC" "50/60 Hz" (AC-3e)
- 7.5 kW at 500 V "AC" "50/60 Hz" (AC-3e)
- 7.5 kW at 660...690 V "AC" "50/60 Hz" (AC-3e)
Motor power in hp:
- 0.5 hp at 115 V for 1 phase motors "AC" "50/60 Hz"
- 2 hp at 230/240 V for 1 phase "AC" motors "50/60 Hz"
- 3 hp at 200/208 V for 3 phase "AC" motors "50/60 Hz"
- 3 hp at 230/240 V for 3 phase "AC" motors "50/60 Hz"
- 7.5 hp at 460/480 V for 3 phase "AC" motors "50/60 Hz"
- 10 hp at 575/600 V for 3-phase "AC" motors "50/60 Hz"
Rated closing power Irms:
- 250 A at 440 V for IEC 60947-compliant power circuit
- 140 A "AC" for signaling circuit complying with IEC 60947-5-1
- 250 A DC for signaling circuit complying with IEC 60947-5-1
Rated allowable short-circuit current (ICW):
- 105 A at <40 °C - 10 s for Power circuit
- 210 A at <40 °C - 1 s for Power Circuit
- 30 A at <40 °C - 10 min for Power Circuit
- 61 A at <40 °C - 1 min per Power circuit
- 100 A - 1 s per signaling circuit
- 120 A - 500 ms per signaling circuit
- 140 A - 100 ms per signaling circuit
Associated fuse gauge:
- 10 A gG for signaling circuit complying with IEC 60947-5-1
- 40 A gG at <= 690 V coordination Type 1 for Power circuit
- 25 A gG at <= 690 V coordination Type 2 for Power circuit
Rated insulation voltage:
- 690 V complying with IEC 60947-4-1 Power Circuit
- 600 V CSA certified Power circuit
- 600 V UL certified Power circuit
- 690 V complying with IEC 60947-1 signaling circuit
- 600 V CSA certified signaling circuit
- 600 V UL certified signaling circuit
Mechanical robustness:
- Open contactor vibration (2 Gn, 5...300 Hz)
- Contactor vibration closed (4 Gn, 5...300 Hz)
- Contactor shocks open (10 Gn for 11 ms)
- Closed contactor shocks (15 Gn for 11 ms)
Other Features:
- Mechanical life span: 15 Mccycles
- Auxiliary contact composition: 1 NO + 1 NC
- Auxiliary contact type: Mechanically linked type 1 NO + 1 NC conforming to IEC 60947-5-1- Mirror contact type 1 NC conforming to IEC 60947-4-1
- Signaling circ. frequency: 25 to 400 Hz
- Insulation resistance: > 10 MOhm per signaling circuit
- IP degree of protection: IP20 Front side complies with IEC 60529
- Dimensions: height 77 mm - width 45 mm depth 86 mm
- Allowable temperature near the device: -40/+60 °C - 60...70 °C with derating
- Operating altitude: 0...3000 m
- Fire resistance: 850 °C complying with IEC 60695-2-1
- Fire resistance: V1 in accordance with UL 94
- Weight: 0.325 kg
There are no reviews
Data sheet
- Type: Contactors
