Telemecanique XS6 inductive sensor M12 SN 4mm NC NPN XS612B1NBL2

Schneider
Schneider
TSI XS612B1NBL2 3389110146288

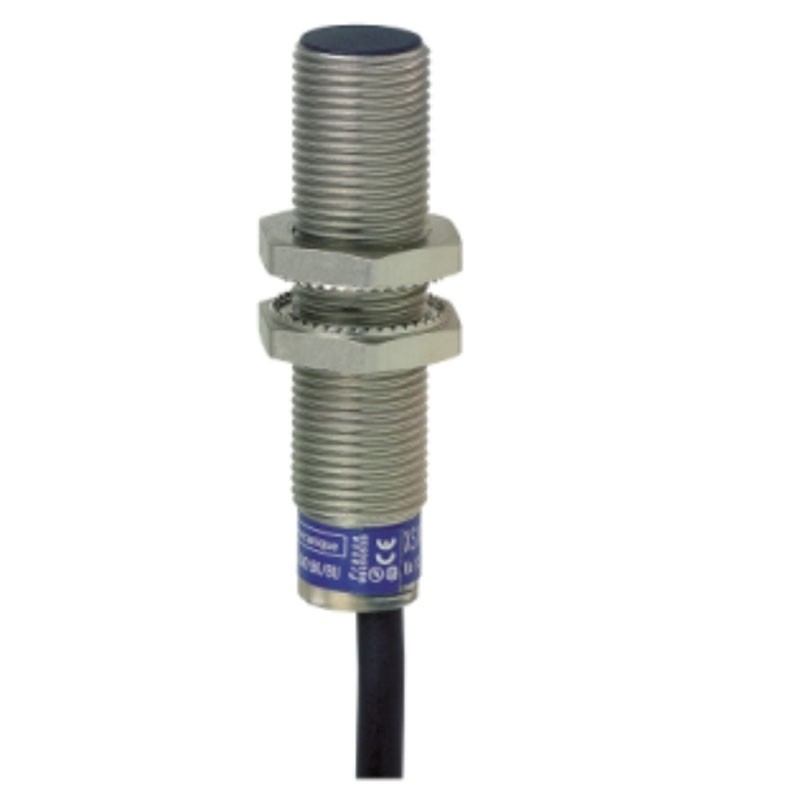

Schneider XS6 Telemecanique inductive proximity sensor with the following features:

  • Application: Framework for construction site
  • Sensor shape: Cylindrical M12
  • Size: 54 mm
  • Body type: Fixed
  • Metal immersion mounting option
  • Material: metal
  • Output signal type: digital
  • Wiring type: 3 wires

Request info about this product

Telemecanique XS6 inductive sensor M12 SN 4mm NC NPN XS612B1NBL2

€29.09 Tax included
€29.09

Telemecanique XS6 inductive sensor M12 SN 4mm NC NPN XS612B1NBL2

€29.09
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Out of stock
Altre disponibilità dal produttore
Incoming
qty

Telemecanique XS6 inductive sensor M12 SN 4mm NC NPN XS612B1NBL2

€29.09

klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other features:

  • Nominal sensing distance: 4 mm
  • Digital output function: 1 NC
  • Output circuit type: DC
  • Digital output type: NNP
  • Electrical connection: cable
  • Cable length: 2 meters
  • Rated supply voltage [Us]: 12...48 V DC with reverse polarity protection
  • Switching capacity in mA: <= 200 mA DC with overload and short-circuit protection
  • IP rating: Double insulation IP68 complying with IEC 60529b - IP69K complying with DIN 40050
  • Thread type: M12 x 1
  • Sensing surface: front side
  • Front side material: PPS
  • Cassette material: nickel-plated brass
  • Sensing range: > 2.5 to 4 mm
  • Operating zone: 0...3.2 mm
  • Differential travel: 1...15% Sr
  • Wire composition: 3 x 0.34 mm²
  • Wire insulation material: PvR
  • Status LEDs: Output status: 1 LED (yellow)
  • Supply voltage limits: 10...58 V DC
  • Switching frequency: <= 2500 Hz
  • Maximum voltage drop: <2 V (closed)
  • Current consumption:<= 10 mA at no load
  • Maximum delay: 10 ms
  • Maximum response delay: 0.2 ms
  • Maximum recovery delay: 0.2 ms
  • Symbology: CE
  • Threaded length: 42 mm
  • Length: 54 mm
  • Weight: 0.075 kg
  • Product certifications: UL - CSA - E2
  • Operating ambient temperature: -25 to 70 °C
  • Storage temperature: -40 to 85 °C
  • Vibration resistance: 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) in accordance with IEC 60068-2-6
  • Shock resistance: 50 gn for 11 ms complies with IEC 60068-2-27
