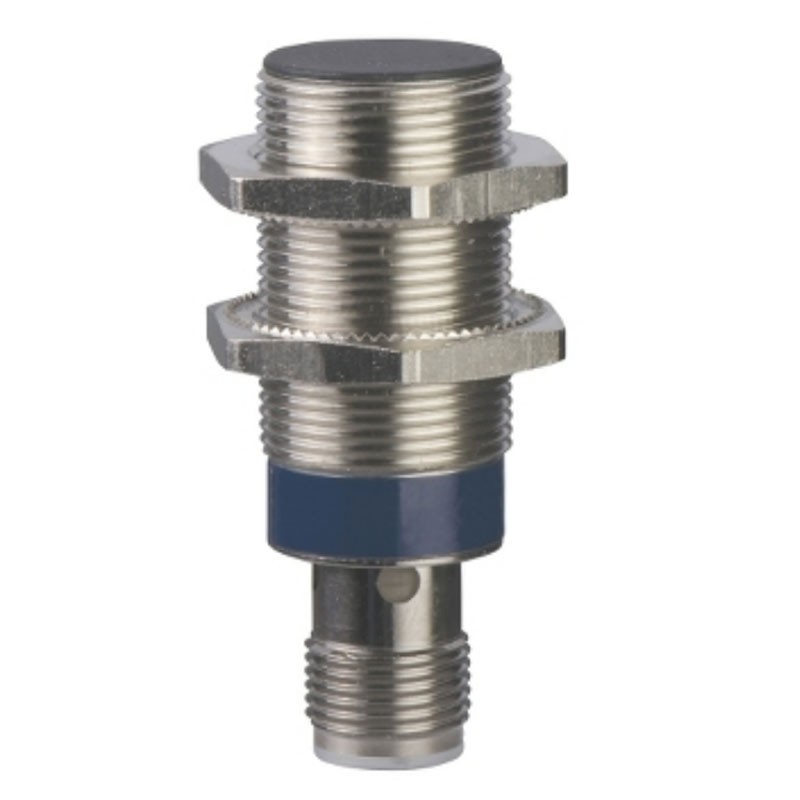

Telemecanique proximity sensor XS5 M18 NO PNP XS518B1PAM12
SNR XS518B1PAM12
3389110143867
Telemecanique Schneider XS5 M18 inductive proximity sensor, with the following characteristics:
- Sensor type: Inductive proximity sensor
- Sensor shape: Cylindrical M18
- Metal immersion mounting capability
- Output signal type: Digital
- Wiring type: 3 wires
- Nominal sensing distance: 5 mm
- Digital output function: 1 NO
- Output circuit type: DC
- Digital output type: PNP
- Electrical connection: M12 male connector, 4 pins
- Rated supply voltage: 12...24V DC with reverse polarity protection
Telemecanique proximity sensor XS5 M18 NO PNP XS518B1PAM12
€24.57
Tax included
€24.57
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
The XS cylindrical inductive sensor (M18 thread) has a PPS sensing face and a nickel-plated brass housing. It has a sensing distance of 5 mm, PNP output with NO function and an M12 connector. It has a supply voltage of 12 to 24 VDC. This cylindrical inductive threaded general purpose proximity sensor is flush mountable. It is directly mountable on a surface or bracket due to the external thread and double nuts and is CCC, CSA, UL certified.
Features:
- Switching capacity in mA: <= 200 mA with overload and short-circuit protection
- IP rating: IP67 in accordance with IEC 60529 - IP69K in accordance with DIN 40050
- Thread type: M18 X 1
- Front material: PPS
- Box material: nickel-plated brass
- Operating zone: 0...4 mm
- Differential travel: 1...15% Sr
- Status LED: Output status: 1 LED (yellow)
- Supply voltage limits: 10...36V DC
- Switching frequency: <= 2000 Hz
- Maximum voltage drop: <2V (closed)
- Current consumption: <= 10 mA at no load
- Maximum delay before up to 10 ms
- Maximum response delay 0.15 ms
- Maximum recovery delay 0.35 ms
- Symbology: CE
- Threaded length: 28 mm
- Length: 50 mm
- Operating ambient temperature: -25/+70 °C
- Storage temperature: -40/+85 °C
- Vibration resistance: 25 gn amplitude = +/- 2 mm (f = 1055 Hz) complies with IEC 60068-2-6
- Shock resistance: 50 gn for 11 ms complies with IEC 60068-2-27
There are no reviews
Data sheet
- Type: Sensors
