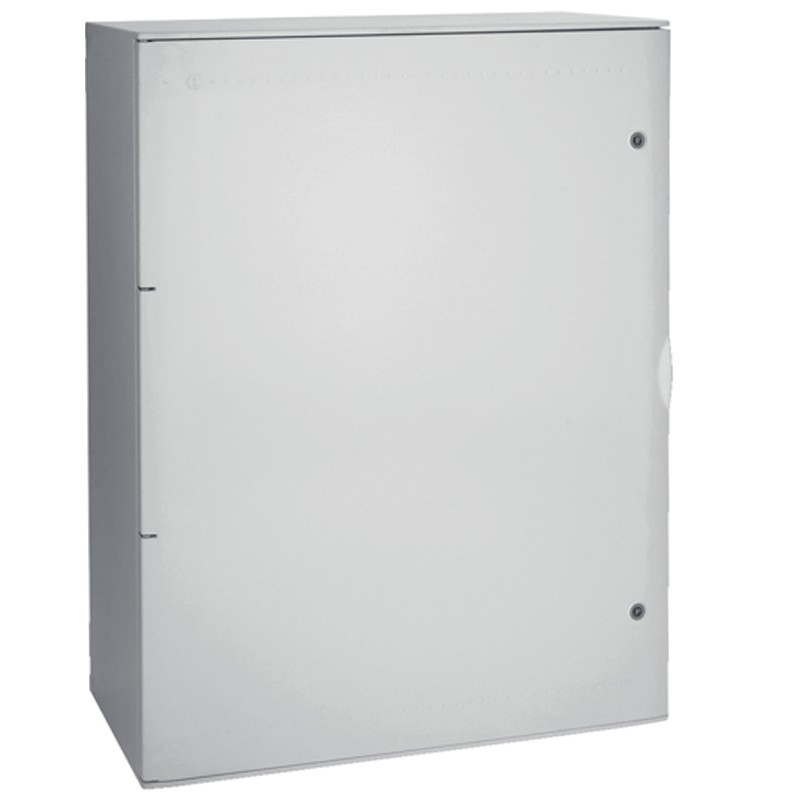

Bocchiotti Pedro blind box in fiberglass 190 modules IP66 B04608
IBO B04608
8015892046083
Bocchiotti VTR 07 blind fiberglass panel, Pedro line, with the following characteristics
- 190 modules (on five rows)
- Degree of protection of the enclosure IP66
- Impact resistance degree IK10
- Colour: grey RAL 7035
Bocchiotti Pedro blind box in fiberglass 190 modules IP66 B04608
€759.14
Tax included
€759.14
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
Pay in installments with Klarna
Frequently bought together
Features:
- Bocchiotti series (Pedro line)
- Protruding fixing mode
- Compatible with DIN rail mounting
- Type of door lock with triangular male key
- Interlockable no
- Door Lock Number 2
- Cover type Blind door
- Keyed lock
- Single door leave
- Cover type Door
- Transparent cover or no door
- Colour grey RAL 7035
- Material Glass-fibre reinforced polyester
- Surface treatment untreated
- Depth 355 mm
- Inside depth 319 mm
- Height 1056.2 mm
- Width 810 mm
- Width in units of division 38
- Thickness of side wall material 2 mm
- Suitable for outdoor use yes
- Mounting plate included no
- Lockable yes
- Number of keys 2
- Number of profiles 5
- Can be upgraded yes
- Reference standards EN 60670-24
- European WEEE Directive not affected
- Impact resistance grade IK10
- Degree of protection of the enclosure IP66
- Insulation protection class II
- Degree of resistance to incandescent wire according to EN 60695-2-11: 960°C
- Halogen-free yes
- Ultraviolet resistant yes
- Operating temperature -25...60 °C
There are no reviews
Data sheet
- Type: Panels
- Degree of protection: IP66
- Model: Blind Door
