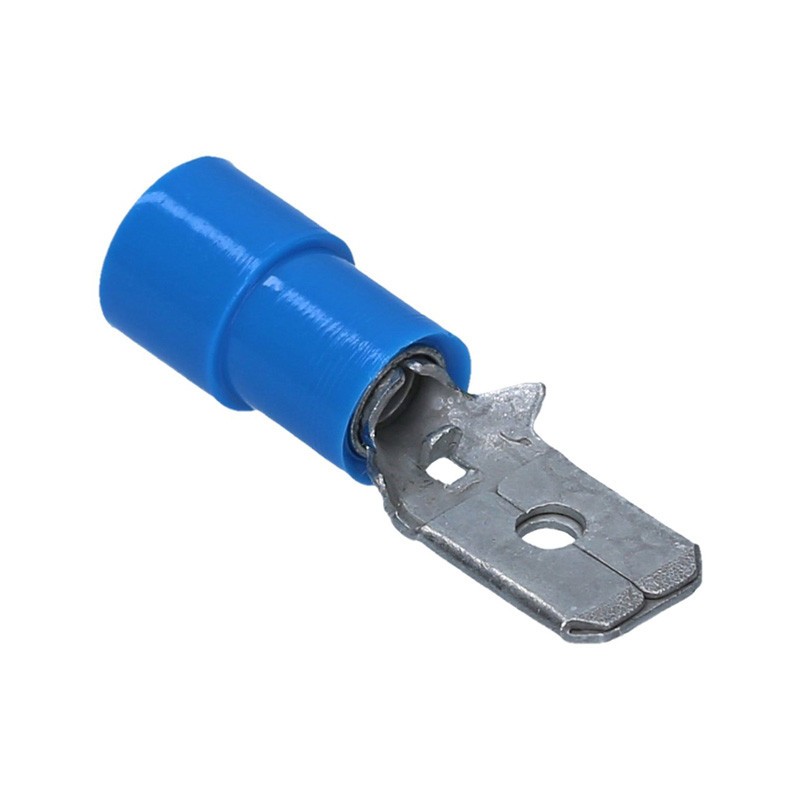

Lugs Cembre-plug male 6,35X0,8 Blue BF-M608
CEM BF-M608
8016692002149
Lugs Cembre-plug male to a width of 6.35 mm, length 21mm - height hook 0,8, color Blue, for copper cables, insulated PC - partially reinforced with blouse in copper.
Lugs Cembre-plug male 6,35X0,8 Blue BF-M608
€0.08
Tax included
€0.08
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 500
: 400
Pay in installments with Klarna
The plug-in connectors pre-insulated in PCS have been designed to meet the needs of increasingly stringent market regarding the reliability and safety of components for electrical connections.
The plug-in connectors preisola in PC have the blouse insulating Polycarbonate, a thermoplastic, halogen-free, characterized, among other things, by a molecular structure in particular that gives higher tenacity than PVC and PA6.6.
Features:
- The connectors are made of brass P-Cu Zn 30 UNI EN 1652
- The tube of reinforcement is made of Copper SF-Cu DIN 1787/1973, F25
- Blouses insulators are made of PC material, halogen-free characterized by high toughness
- Dielectric strength (KV/mm): >30
- The specific resistance of volume (?/cm): >1016
- Temp. maximum operating (°C): 115÷130
- Flammability (UL-94) V0
- Density (g/cm3): 1,2
- Absorption d H2O (%): 0,15
- Resistance at break (N/mm2): >65
- Material (Body) Brass, tin-plated electrolytically
- Material (Reinforcement part), Copper-ETP, tin plated electrolytically
- Material (Blouse partially insulating material) Polycarbonate.
There are no reviews
Data sheet
- Type: Terminal lugs
