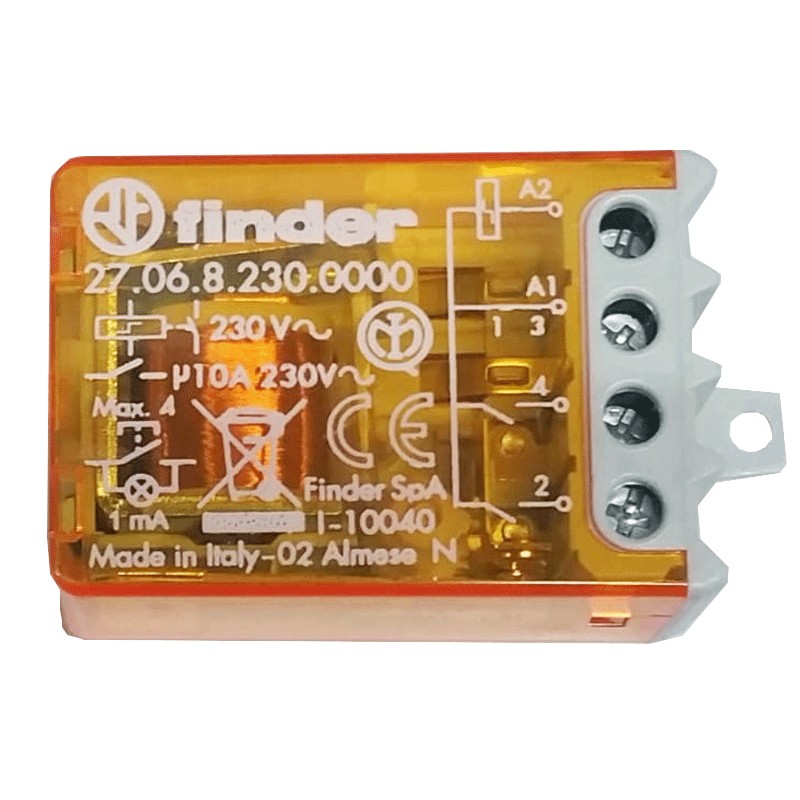

Finder impulse switch relay 3 sequences 230V 27.06 27068230
FIN 270682300000
8012823231815
Relay/switch Finder Type 27.06 pulsed with 3 sequences, with the following features:
- 230V AC coil
- Socket terminals
- Switch 3 sequences 2 NO
- Panel mounting
- Cadmium free contacts
- Italian patent
Finder impulse switch relay 3 sequences 230V 27.06 27068230
€10.55
Tax included
€10.55
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 46
: 20
Pay in installments with Klarna
Contact configuration
Switch 3 sequences
Rated current (A)
10 To
Rated voltage/max. (V)
250
Rated load in AC1 (VA)
2500
Contact material
AgNi
Supply voltage
230 V
Version coil
AC (50 Hz)
Electrical life at full load in AC1 (cycles)
100·103
Ambient temperature (°C)
-40...+40
Variants
-
Special versions
-
Dimensions (mm)
45x22x46.6
Approvals (according to type):
EC
DOWNLOAD THE COMPLETE CATALOG click here
Switch 3 sequences
Rated current (A)
10 To
Rated voltage/max. (V)
250
Rated load in AC1 (VA)
2500
Contact material
AgNi
Supply voltage
230 V
Version coil
AC (50 Hz)
Electrical life at full load in AC1 (cycles)
100·103
Ambient temperature (°C)
-40...+40
Variants
-
Special versions
-
Dimensions (mm)
45x22x46.6
Approvals (according to type):
EC
DOWNLOAD THE COMPLETE CATALOG click here
Télérupteur silencieux et répondant à ses caractéristiques. EXCELLENT PRODUIT.
Tutto alla perfezione massima serietà in tutto
Conforme alla descrizione. Funzionamento come previsto
Data sheet
- Type: Relays
- Version: Switch
- Installation: Recessed
