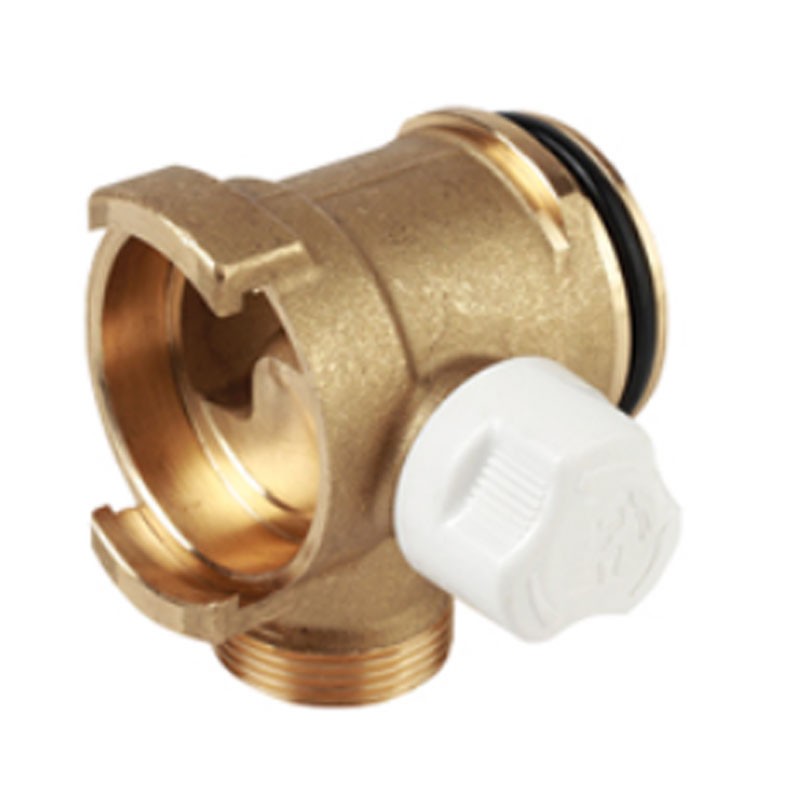

Giacomini modular manifold with tap DN25x16 R585MY105
GIA R585MY105
8009902215163
Giacomini's modular manifold, quick coupling for sanitary systems, with interception valve, in brass. Dimension DN25 x 16.
Giacomini modular manifold with tap DN25x16 R585MY105
€6.90
Tax included
€6.90
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 176
Pay in installments with Klarna
Connections for copper, plastic or multilayer pipe adapter. Interaxis of assembled module connections 35 mm.
The R585M modular manifolds have been designed with particular attention to the use in sanitary distribution systems, trying to solve the installation problems, obtaining a product of high flexibility and functionality without neglecting the aesthetic and ergonomic aspects. The innovative solution of the single module allows the realization of manifolds characterized by multiple number of connections according to the needs of the site, eliminating warehouse stocks essential with traditional pre-assembled manifolds. The frontal handwheel allows to easily intercept the circuits and to partialize the flow rate in case the users need low quantities of water. R585M manifolds are also suitable for radiator heating distribution, especially in small systems fed by wall boilers, where each connection requires water flow rates lower than 180 l/h. The shape of the modules and their overall dimensions are compatible with supports and boxes used for the other models of Giacomini quick coupling manifolds.
Characteristics:
- Giacomini series
- Temperature range: 5÷90 °C
- Maximum working pressure: 10 bar ISO 9001 0006/7 ISO 14001 0032A/2
- Suitable for hot and cold sanitary water and radiators heating
- Pressed brass body
- Surface nickel-plating treatment
- Shut-off handwheel in high resistance synthetic material
- EP sealing rings
- Passage section DN25
- Centre distance between connections of assembled modules: 35 mm
- Connection for adaptors R178, R179, R179AM base 16
There are no reviews
Data sheet
- Type: Modular Manifolds
