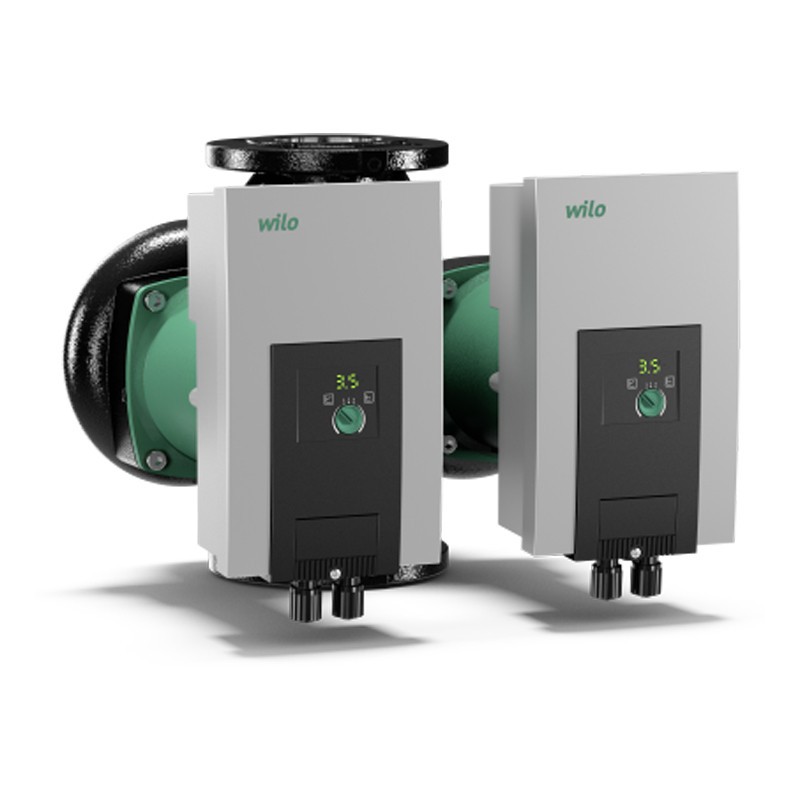

Circulator double Wilo REPLACEMENT MAXO-D 50/0,5-12 with rotator wet 2120668

Circulator double Wilo REPLACEMENT MAXO-D 50/0,5-12 with rotator wet 2120668

Wilo
Wilo
WIL 2120668 4048482274928

Double pump Wilo REPLACEMENT MAXO-D 50/0,5-12 electronically controlled, wet rotor synchronous motor according to ECM-technology and adjustment of the integrated power for the modulating control of the differential pressure. Can be used in all applications of heating, ventilation and air-conditioning.

Download technical data sheet


Request info about this product
Circulator double Wilo REPLACEMENT MAXO-D 50/0,5-12 with rotator wet 2120668

Circulator double Wilo REPLACEMENT MAXO-D 50/0,5-12 with rotator wet 2120668

€3,077.66 Tax included
€3,077.66

Circulator double Wilo REPLACEMENT MAXO-D 50/0,5-12 with rotator wet 2120668

€3,077.66
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 2
Altre disponibilità dal produttore
qty

Circulator double Wilo REPLACEMENT MAXO-D 50/0,5-12 with rotator wet 2120668

€3,077.66

Buy it within and receive it from Friday, 14 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Each pump can be operated in single operation (operation main/backup). To allow the automatic exchange of the pumps in case of a block, you need an appropriate control unit.

Series with:

- Ways of adjustment preset for an optimal adaptation of the load: ?p-c (differential pressure constant), ?p-v (differential pressure variable)

- 3 stages of speed (n = constant)

- Indicator LEDS for the setting of the nominal value and the display of error messages

- Electrical connection with the connector of the Wilo

- Error signal and a contact for reporting cumulative of the block.


Features:

  • Nominal diameter fitting 50
  • The field of the nominal head of 0.5-12m
  • Working pressure, maximum PN 10 BAR
  • Energy efficiency index EEI 0,23
  • Emission electromagnetic interference EN 61800-3;2004+A1;2012 / residential environment (C1)
  • Immunity to interference EN 61800-3;2004+A1;2012 / industrial environment (C2)
  • Mains power supply 1~230 V, 50/60 Hz
  • Input current P1 max. P1 max 600.0 W
  • Speed min. nmin 950 rpm
  • Speed max. nmax 4600 rpm
  • Motor protection IPX4D
  • Cable entry 2 x M20x1.5
  • Pump body EN-GJL-250
  • Impeller PPS-GF40
  • Shaft 1.4028
  • Material bearing graphite
  • Fitting for the pipes on the suction side DN 50
  • Fitting for the pipes on the pressure side DN 50
  • Length constructive l0 280 mm.

There are no reviews

Data sheet

Type:
Circulatory
Version:
Double
Model:
Wet rotor
