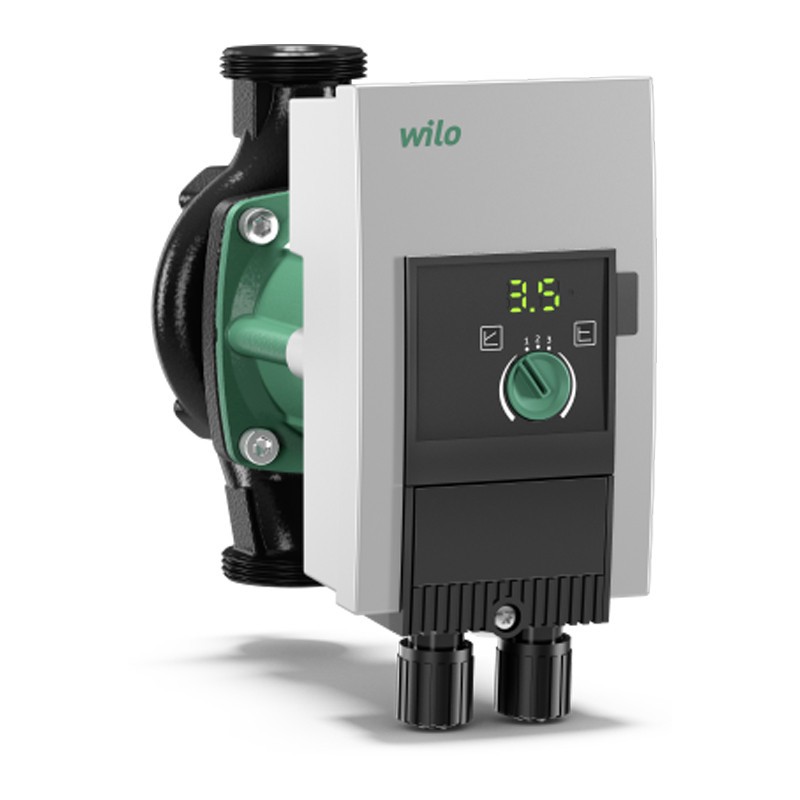

Circulator Wilo REPLACEMENT MAXO 25/0,5-7 with wet rotor 2120639
WIL 2120639
4048482235868
Circulation pump Wilo REPLACEMENT MAXO 25/0,5-7 with wet rotor is electronically controlled, with a connection to the pipe union or flange, EC motor and automatic adaptation of the performance, for all heating systems, air conditioning systems, closed circuits of refrigeration, circulation systems industrial.
Circulator Wilo REPLACEMENT MAXO 25/0,5-7 with wet rotor 2120639
€526.26
Tax included
€526.26
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
Pay in installments with Klarna
Special features/product advantages:
- The LED indicator provides complete transparency with regard to the nominal head, to the stage of speed or possible errors
- Easy setting through the stages of speed in the case of replacing a standard pump, non-regulated
- Electrical connection is simplified thanks to the thorns Wilo
- Security and safety about the plant availability thanks to the reporting of cumulative block
- Compact construction, simple handling and proven.
Features:
- Nominal diameter fitting 25
- The field of the nominal head of 0.5-7m
- Maximum operating pressure PN 10 bar
- Max head. H 7,00 m
- Flow max. Q 8.2 m3/h
- Pump body EN-GJL-200
- Impeller PPE/PS-GF30
- Shaft 1.4122
- Material bearing Graphite
- Energy efficiency index EEI 0,20
- Rated current IN 0.08 A
- Rated current 1.00 TO
- Speed min. nmin 1000 rpm
- Speed max. nmax 3700 rpm
- Power consumption (min) P1 min 5.0 W
- Input current P1 max. P1 max 120,0 W
- Cable entry 2 x M20x1.5
- Insulation class F
- Degree of protection IPX4D
- Fitting for the pipes on the pressure side G 1½
- Fitting for the pipes on the suction side G 1½
- Length constructive l0 180mm.
Materials:
- Pump body: grey cast iron coated in cataphoresis (KTL)
- Shaft: stainless Steel
- Bearings: Carbon-impregnated metal
- Impeller: plastic.
Le produit est conforme et de qualité
Belle pièce, bien emballée, rien à dire
prezzo competitivo pompa ottima già acquistata in precedenza ottimo spedizione veloce , consigliata
Data sheet
- Type: Circulatory
- Version: Single
- Model: Wet rotor
