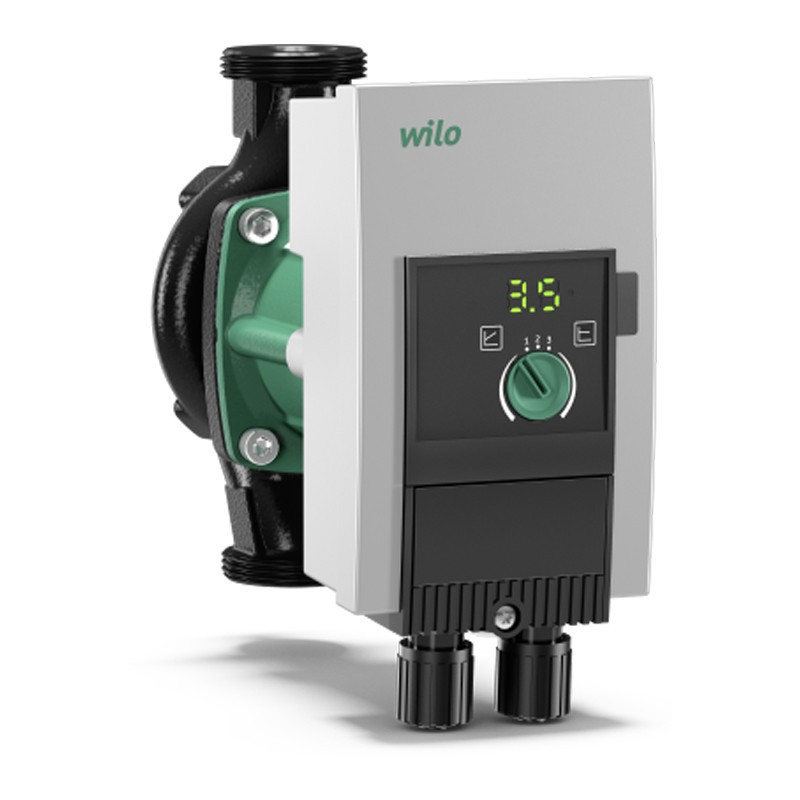

Circulator Wilo REPLACEMENT MAXO 30/0,5-10 rotator wet 2120643
WIL 2120643
4048482235905
Circulation pump Wilo REPLACEMENT MAXO 30/0,5-10 with wet rotor synchronous motor according to ECM-technology and adjustment of the integrated power for the modulating control of the differential pressure. Can be used in all applications of heating, ventilation and air-conditioning.
Circulator Wilo REPLACEMENT MAXO 30/0,5-10 rotator wet 2120643
€628.80
Tax included
€628.80
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
Series with:
- Ways of adjustment preset for an optimal adaptation of the load: ?p-c (differential pressure constant), ?p-v (differential pressure variable)
- 3 stages of speed (n = constant)
- LED indicator for setting the value of the delivery and the display of error messages
- Electrical connection with the connector of the Wilo
- error signal and a contact for reporting cumulative of the block.
Features:
- Nominal diameter of fitting 30
- The field of the nominal head of 0.5-10m
- Maximum operating pressure PN 10 bar
- Energy efficiency index EEI 0,20
- Emission electromagnetic interference EN 61800-3;2004+A1;2012 / residential environment (C1)
- Immunity to interference EN 61800-3;2004+A1;2012 / industrial environment (C2)
- Mains power supply 1~230 V, 50/60 Hz
- Input current P1 max. P1 max 190.0 W
- Speed min. nmin 1000 rpm
- Speed max. nmax 4450 rpm
- Motor protection IPX4D
- Cable entry 2 x M20x1.5
- Pump body EN-GJL-200
- Impeller PPE/PS-GF30
- Shaft 1.4122
- Material bearing Graphite
- Fitting for the pipes on the suction side G 2
- Fitting for the pipes on the pressure side G 2
- Length constructive l0 180mm.
Mis en place et lieu de l'ancienne pompe pour le moment rien à signaler
The product was correctly what I expected. No further comment or complaints
Data sheet
- Type: Circulatory
- Version: Single
- Model: Wet rotor
