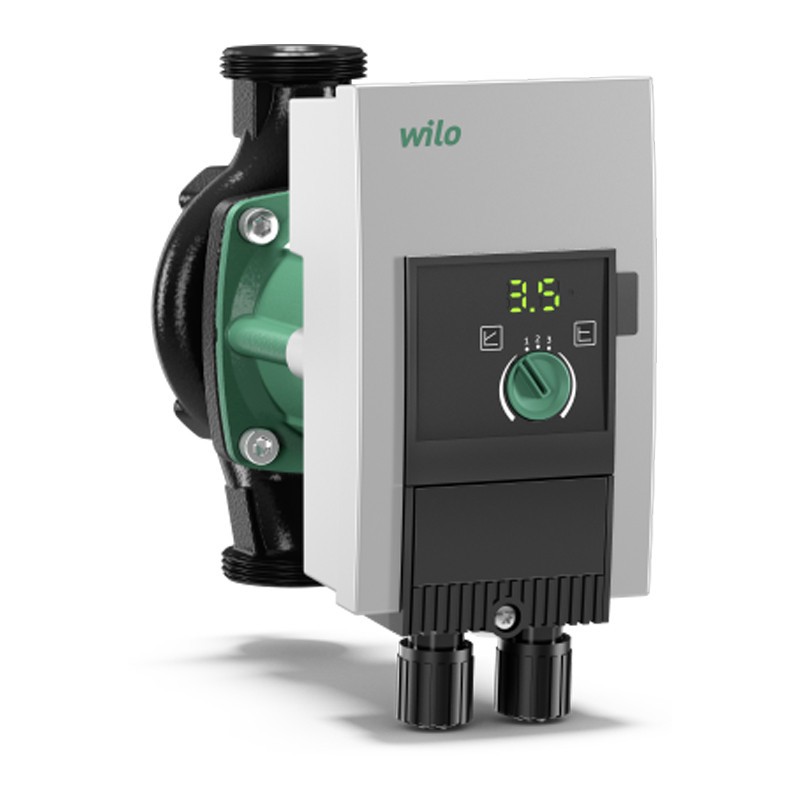

Wilo YONOS MAXO Roller pump 50/0,5-12 with wet rotor 2120651
WIL 2120651
4048482235974
Wilo YONOS MAXO 50/0.5-12 Roller pump with wet rotor, synchronous motor according to ECM technology and integrated power regulation for modulating differential pressure control. Can be used in all heating, ventilation and air conditioning applications.
Wilo YONOS MAXO Roller pump 50/0,5-12 with wet rotor 2120651
€1,661.73
Tax included
€1,661.73
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
Series with:
- Ways of adjustment preset for an optimal adaptation of the load: ?p-c (differential pressure constant), ?p-v (differential pressure variable)
- 3 stages of speed (n = constant)
- LED indicator for setting the value of the delivery and the display of error messages
- Electrical connection with the connector of the Wilo
- error signal and a contact for reporting cumulative of the block.
Features:
- Rated diameter fitting 50
- Field of the rated head of 0.5-12m
- Maximum operating pressure PN 10 bar
- Energy efficiency index EEI 0,20
- Emission electromagnetic interference EN 61800-3;2004+A1;2012 / residential environment (C1)
- Immunity to interference EN 61800-3;2004+A1;2012 / industrial environment (C2)
- Mains power supply 1~230 V, 50/60 Hz
- Input current P1 max. P1 max600.0 W
- Speed min. nmin 950 rpm
- Speed max. nmax 4600 rpm
- Motor protection IPX4D
- Cable entry 2 x M20x1.5
- Pump body EN-GJL-250
- Impeller PPS-GF40
- Shaft 1.4028
- Material bearing Graphite
- Fitting for the pipes on the suction side DN 50
- Fitting for the pipes on the pressure side DN 50
- Length constructive l0 280mm.
There are no reviews
Data sheet
- Type: Circulatory
- Version: Single
- Model: Wet rotor
