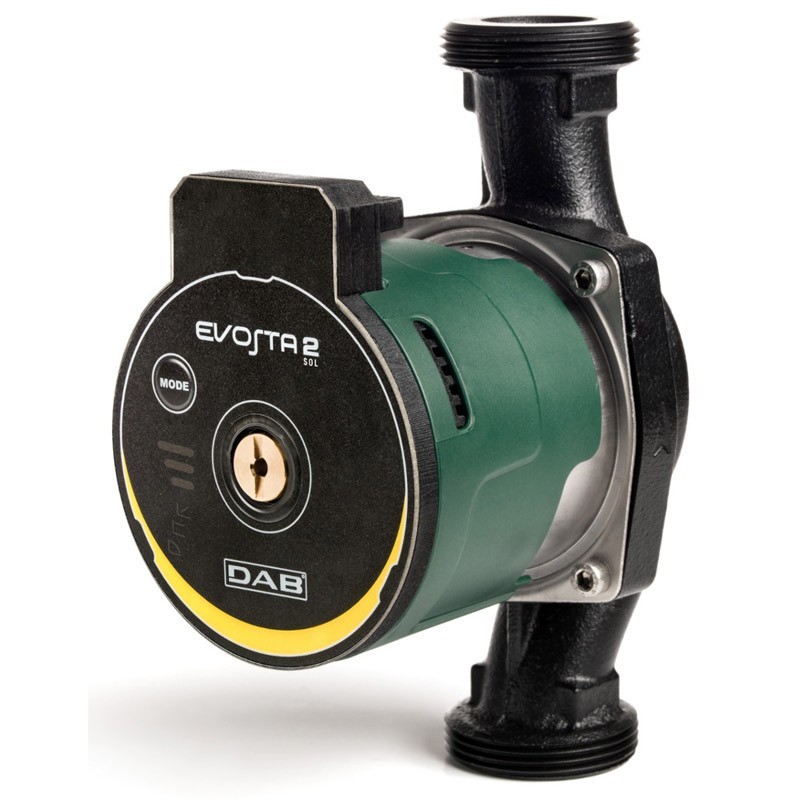

Electronic pump Dab EVOSTA2 SOL 75/180 for solar 60188405
DAB 60188405
8059893176318
Electronic pump Dab EVOSTA2 SOL 75/180 low energy consumption for circulation of water in all types of solar heating.
Electronic pump Dab EVOSTA2 SOL 75/180 for solar 60188405
€288.70
Tax included
€288.70
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
EVOSTA 2 SOL is the new range of circulators DAB is capable of providing the robustness of the circulator mechanical, combined with the advantages of the electronic one. The permanent magnet synchronous motor, the frequency converter, the efficiency index EEI 0,20 matched to the degree of protection IPX4 and vent plug, integrated, make the family EVOSTA 2 SOL one of the best products of the category in terms of efficiency and reliability. The range of circulators EVOSTA 2 SOL lends itself very well to the replacement of the old circulators three speed is for the compact size, both for the completeness of the offer in terms of performance. In addition, and a product that can simplify the task of the installer having a single button set-sequential, and direct access to the motor shaft for the eventual release.
Pump body in cast iron with cataphoresis treatment and motor wet rotor. Motor casing in stainless steel, impeller in technopolymer. The motor shaft fitted ceramic bearing ceramic lubricated by the pumped liquid. Shirt of the rotor, jacket stator, and closing flange in stainless steel. Thrust ring in graphite. EPDM o-rings and cap air vent brass. Thanks to the internal protection of the motor, the pump requires no protection against overload.
The functionality of the circulatory EVOSTA 2 SOL can be modified through the control panel, located on the cover of the electronic control device. The pump has nine setting options that can be selected with the MODE button
Features:
- Centre distance 180 mm
- Pump connections DN25 THREAD ( G 1½)
- Power supply 1x230 V ~ 50Hz
- P1 Max 47W
- 0,07-0,4
- Temperature range of the liquid: from -10 °C to +110°C (130 °C to 60 °C environment)
- Operating pressure: 10 bar (1000 kPa)
- Degree of protection: IPX4
- Insulation class: F
- Installation: with lasse of the horizontal motor
- Power supply range: single-phase 1x115-230v~ 50/60 Hz
- Pumped liquid: Clean, free from solid substances and mineral oils, not viscous, chemically neutral, close to characteristics of water (glycol max. 50%).
There are no reviews
Data sheet
- Type: Circulatory
- Model: Wet rotor
